The AD5204BCPZ10-REEL is a high-performance, 4-channel digital potentiometer manufactured by Analog Devices Inc., a leader in precision high-performance electronics. This particular integrated circuit (IC) is designed to provide a reliable and precise solution for adjusting and controlling resistance values electronically in a wide range of applications, including calibration, signal conditioning, and power supply adjustment.

Key Features

• Channels: The device includes 4 independent programmable potentiometers, offering flexibility for multi-channel applications.
• Resolution: Each potentiometer comes with a 10-bit resolution, providing fine adjustment capability with 1024 discrete steps for precise control.
• End-to-End Resistance: The device offers an end-to-end resistance of 10 kΩ, suitable for a variety of signal processing tasks.
• Interface: It features a user-friendly SPI interface, making it easy to integrate with microcontrollers and other digital systems.
• Supply Voltage: The IC operates on a supply voltage ranging from 2.7V to 5.5V, accommodating various logic levels and power requirements.

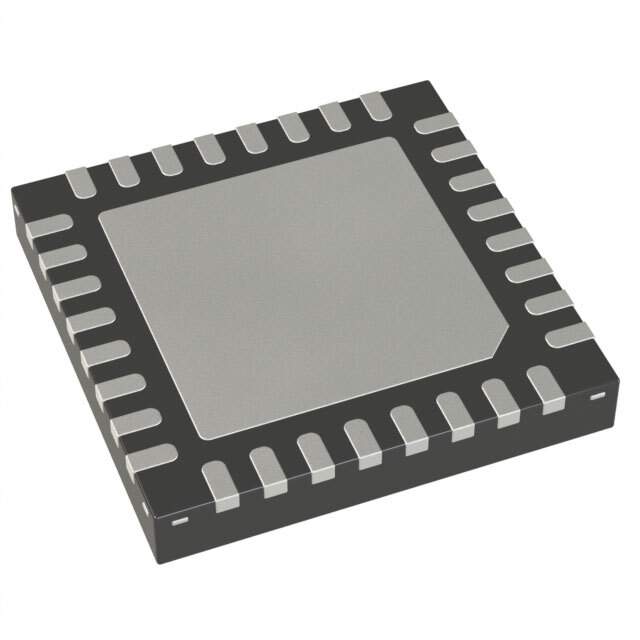

• Packaging: The AD5204BCPZ10-REEL is offered in a compact LFCSP (Lead Frame Chip Scale Package), ensuring a minimal footprint on circuit boards.

Applications

The AD5204BCPZ10-REEL is versatile and can be used in a multitude of electronic systems. Typical applications include:

• Automated product calibration systems
• Adjustable power supplies and voltage dividers
• Audio equipment for volume and tone control
• Industrial automation for process control and adjustments
• Data acquisition systems with variable input scaling

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the AD5204BCPZ10-REEL is no exception. This digital potentiometer is designed to meet high standards for stability and performance, ensuring reliable operation in demanding environments. The "REEL" designation indicates that the product is available in tape and reel packaging, which is ideal for automated manufacturing processes, ensuring safe handling and efficient assembly.
