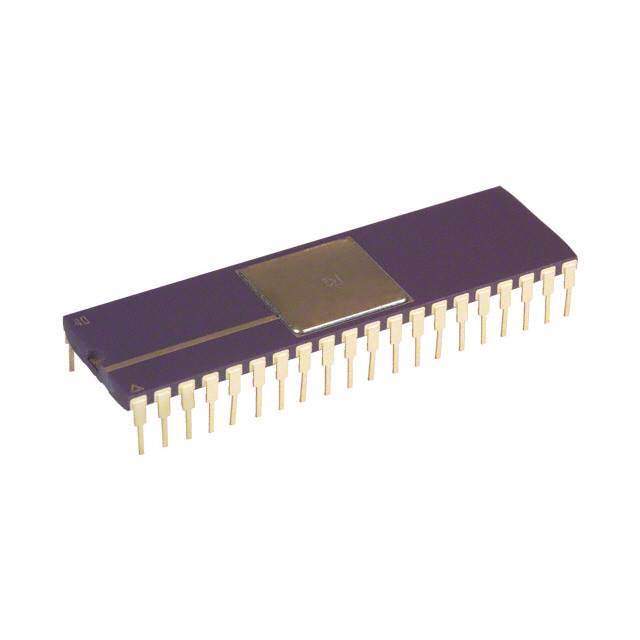

Product Overview: AD2S80ASD from Analog Devices Inc.

The AD2S80ASD is a high-performance, variable-resolution monolithic Resolver-to-Digital Converter (RDC) developed by Analog Devices Inc. This advanced product is specifically designed to provide precision angular displacement and velocity decoding, which are essential in various industrial and military applications such as servo control systems, robotics, and avionics.

Key Features

• High Accuracy: The AD2S80ASD offers exceptional accuracy and resolution, making it suitable for the most demanding applications where precise position and speed measurement is critical.
• Variable Resolution: Users can configure the resolution from 10 to 16 bits, allowing for flexibility in different system requirements and ensuring optimal performance.
• Built-in Tracking Converter: The device includes a tracking converter that locks onto the input signal frequency, providing continuous and reliable data conversion without interruption.
• Velocity Output: Besides angular position, the AD2S80ASD also provides a velocity output, which can be used for dynamic control in motion control systems.
• Self-Test Functionality: Equipped with an internal self-test feature, the device can verify the integrity of the conversion process, ensuring consistent and reliable operation.

Applications

• Servo motor control and positioning
• Robotics and automated machinery
• Antenna positioning systems
• Avionics and nautical instrumentation
• Machine tool and process control

Technical Specifications

The AD2S80ASD operates over a wide temperature range and is available in a hermetically sealed package, ensuring durability and reliability under harsh environmental conditions. With its versatile interface options, it can easily be integrated into a wide array of systems, providing a robust and precise solution for complex measurement tasks.

For more detailed specifications and application support, please refer to the official datasheet and product documentation provided by Analog Devices Inc.
