AD2S1205WSTZ: High-Performance Resolver-to-Digital Converter

The AD2S1205WSTZ is a state-of-the-art variable resolution, monolithic resolver-to-digital converter, and is a part of the high-performance product line from Analog Devices Inc. Designed to operate with a resolver sensor, the AD2S1205WSTZ converts resolver format signals into a digital angle and velocity output, making it an ideal choice for precision motor control and positioning systems.

Key Features

• Resolver to Digital Conversion: The AD2S1205WSTZ offers a 16-bit resolution and a user-selectable resolution for versatile application across various industries.
• High Accuracy: With its precise conversion capabilities, it ensures high accuracy in angle measurements, essential for applications requiring exact positioning.
• Programmable Resolution: The device features a programmable resolution from 10 to 16 bits, allowing customization for specific application needs.
• Velocity Output: It provides a digital velocity output, which is vital for dynamic control in servo systems.
• Continuous Tracking: Its ability to continuously track the resolver signals at speeds of up to 3125 rps (revolutions per second) makes it suitable for high-speed applications.

Applications

The AD2S1205WSTZ is particularly useful in industries where precision motion control is crucial. Typical applications include:

• Industrial servo motors
• Automotive systems
• Robotics
• Process control systems

Product Specifications

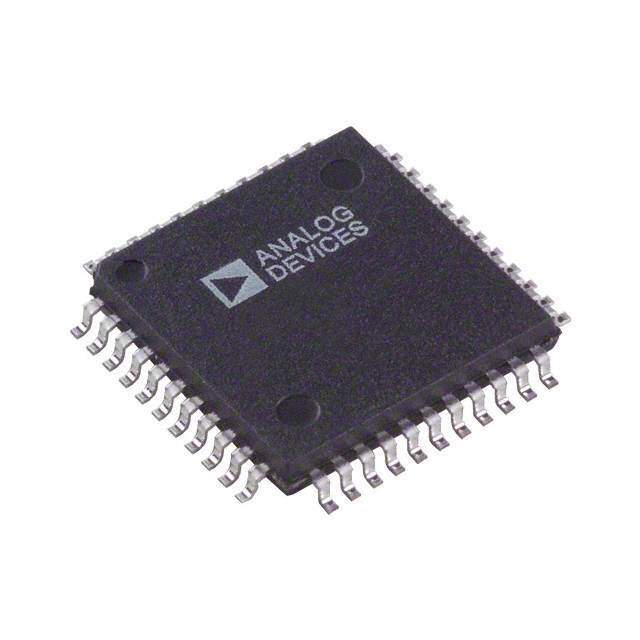

The AD2S1205WSTZ comes in a compact LQFP-48 package and is designed to operate over the industrial temperature range. It requires a single 5 V power supply and features a built-in fault detection circuitry for increased system reliability. The device's robust design ensures it can withstand the challenging conditions often found in industrial environments.

Conclusion

Overall, the AD2S1205WSTZ from Analog Devices Inc. offers a reliable and precise solution for converting resolver signals to digital data. Its programmable features and high-speed capabilities make it an excellent choice for designers looking to enhance the performance and accuracy of their motion control systems.
