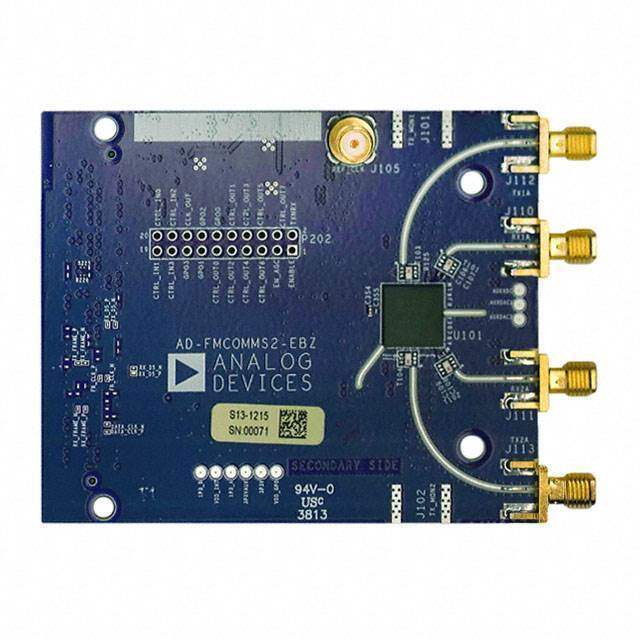

The AD-FMCOMMS2-EBZ from Analog Devices Inc. is a high-performance, mixed-signal front-end (MxFE) module designed for RF applications, such as rapid prototyping of software-defined radio (SDR) and complex RF signal processing tasks. This versatile module is compatible with a range of FPGA development boards, making it an ideal choice for engineers and researchers looking to explore the RF spectrum and develop sophisticated communication systems.

At the heart of the AD-FMCOMMS2-EBZ is the AD9361, a highly integrated RF Agile Transceiver™ that operates from 70 MHz to 6 GHz. This transceiver is capable of supporting a wide range of applications, including 3G and 4G base station and test equipment, military radios, and general-purpose RF test and measurement instruments.

The module provides a 2x2 MIMO (Multiple Input Multiple Output) configuration and includes integrated phase-locked loops (PLLs), digital-to-analog converters (DACs), and analog-to-digital converters (ADCs) that deliver high performance in a small form factor. The AD-FMCOMMS2-EBZ is designed to support a wide variety of data rates, bandwidths, and power levels, enabling users to tailor their designs to specific requirements.

Key features of the AD-FMCOMMS2-EBZ include:

• Wideband RF transceiver covering 70 MHz to 6 GHz
• Support for TDD and FDD operation
• 2x2 MIMO support with independent receiver and transmitter chains
• Highly configurable signal chain elements
• Open-source reference design software and HDL code

The module also comes with comprehensive support materials, including detailed documentation, reference designs, and software drivers, which help streamline the development process. Whether you're working on commercial, industrial, or defense-related RF applications, the AD-FMCOMMS2-EBZ provides a flexible and powerful platform for innovation and product development.
