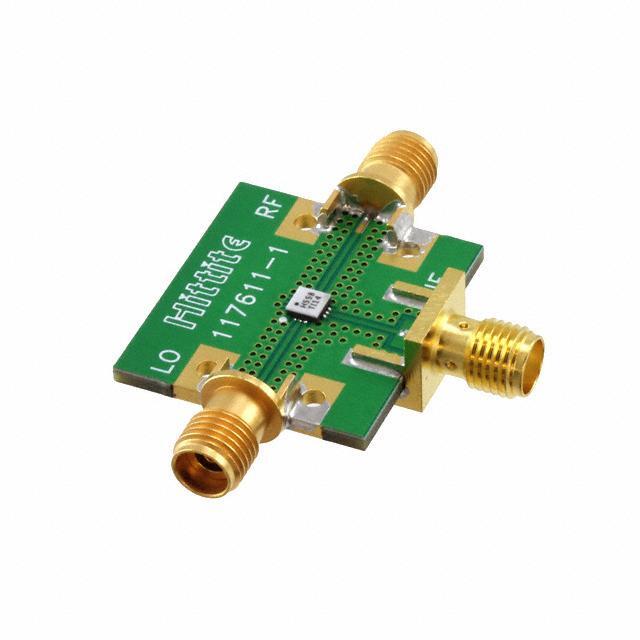

The HMC558LC3B is a high-performance, wideband Double Balanced Mixer product from Analog Devices Inc., designed to meet the demanding needs of RF and microwave communication systems. This mixer is part of Analog Devices' Hittite microwave products and is well-suited for applications in test and measurement, military, space, and communication infrastructure.

Key Features

• Frequency Range: The HMC558LC3B operates over a broad frequency range, providing excellent versatility in various applications. It supports an RF and LO frequency from 6 to 10 GHz and an IF frequency from DC to 3 GHz.
• Conversion Loss: It offers a low conversion loss, enhancing the overall efficiency and performance of the system in which it is integrated.
• LO/RF Isolation: The device provides excellent LO to RF isolation, minimizing potential interference and ensuring high signal integrity.
• Package: The HMC558LC3B is housed in a compact 3x3 mm ceramic QFN package, making it suitable for space-constrained applications while providing robust performance.

Applications

The HMC558LC3B is ideal for a variety of applications, including:

• Point-to-point and point-to-multipoint radios
• Military and space applications
• Test equipment and sensors
• Communication systems

Technical Specifications

With its high performance and versatility, the HMC558LC3B from Analog Devices Inc. stands out as a superior choice for designers looking to enhance their RF and microwave systems. For more detailed information and specifications, please refer to the product datasheet and technical documentation available from Analog Devices.
