Same model may have multiple batches, images only for reference.

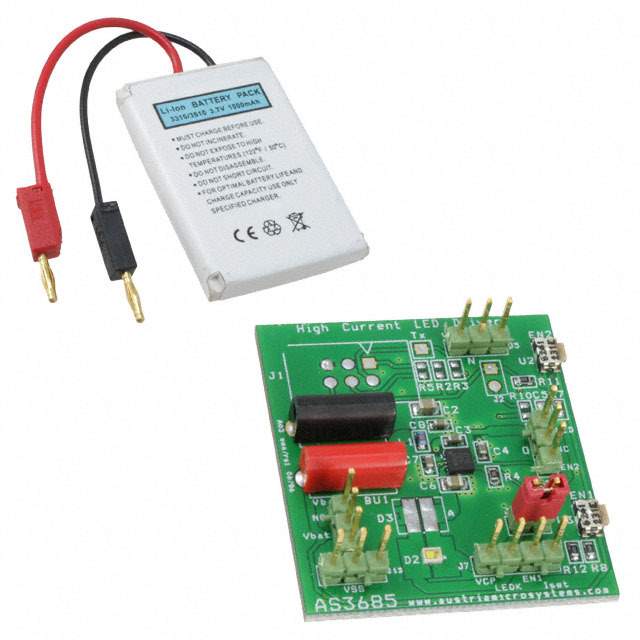

AS3685A-DB-DFN Real Image
Same model may have multiple batches, images only for reference.

AS3685A-DB-DFN

Part No AS3685A-DB-DFN
Manufacturer ams
Catalog Board Mount LED Drivers
Description BOARD DEMO FOR AS3685A
Datasheet
AS3685A-DB-DFN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer ams
Output Current per Channel 1A
Outputs and Type 1, Non-Isolated
Voltage - Input 3 V ~ 5.5 V
Supplied Contents Board(s)
Utilized IC / Part AS3685A
Win Source Part Number 768816-AS3685A-DB-DFN
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian AS3685A-DB-DFN CAD Model

Description

The ams AS3685A development board is an ideal tool for designing and testing electronic circuits.

  • Voltage Input: 3 V - 5.5 V
  • Output Current: 1A per channel
  • Kit Includes: Board and Non-Isolated Output
  • Demand: Medium
  • Supply: Balanced
  • Availability: Limited
  • IC/Part: AS3685A
