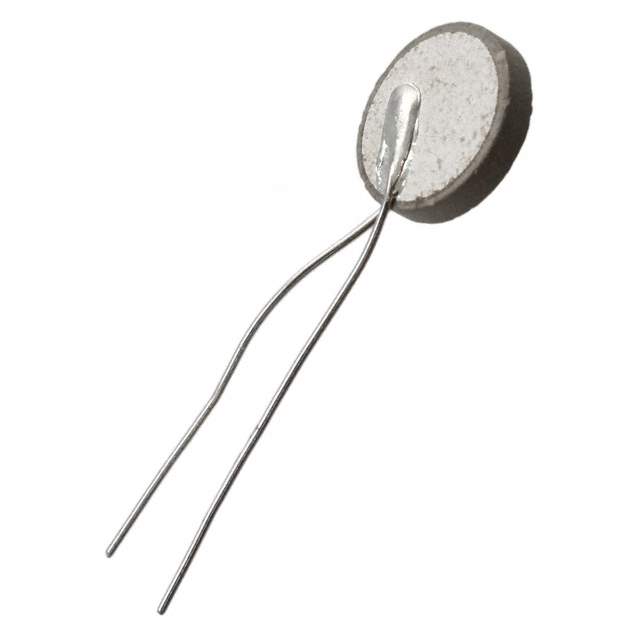

Same model may have multiple batches, images only for reference.

YQS5868PTF

Name: YQS5868PTF
Brand: Amphenol
SKU: 1118779
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	YQS5868PTF
Manufacturer	Amphenol
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 120V 80MA RADIAL / Ceramic PTC Resettable Fuse 120V 80 mA Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Amphenol Thermometrics
Series	PTF
Package	Bulk
Type	Ceramic
Voltage - Max	120V
Current - Hold (Ih) (Max)	80 mA
Current - Trip (It)	170 mA
Resistance - 25°C (Typ)	50 Ohms
Temperature Range - Operating	10°C ~ 55°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.532" Dia x 0.201" T (13.50mm x 5.10mm)
Height - Seated (Max)	0.551" (14.00mm)
Lead Spacing	0.197" (5.00mm)
Base Product Number	YQS5
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	235-1255,YQS5868PTF-ND,2266-YQS5868PTF
Standard Package	500
Win Source Part Number	1118779-YQS5868PTF
Ultra Librarian 3D Model	Ultra Librarian YQS5868PTF CAD Model

Description

The Amphenol PTF series ceramic type 1118779-YQS5868PTF is a PTC resettable fuse.

Packaging: Bulk
Height - Seated (Max): 0.551" (14.00mm)
Standard Package: 500
Lead Spacing: 0.197" (5.00mm)
Voltage - Max: 120V
Current - Hold (Ih) (Max): 80 mA
Current - Trip (It): 170 mA
Mounting Type: Through Hole
Package/Case: Radial, Disc
Temperature Range - Operating: 10°C ~ 55°C
Dimension: 0.532" Dia x 0.201" T (13.50mm x 5.10mm)
Resistance - 25°C (Typ): 50 Ohms
Alternative Part (Cross-Reference): YQS5868PTF
HTSUS: 8533.40.8070
Manufacturer: Amphenol Thermometrics
Other Names: 235-1255, YQS5868PTF-ND, 2266-YQS5868PTF
Base Product Number: YQS5
Approval Agency: None
