Same model may have multiple batches, images only for reference.

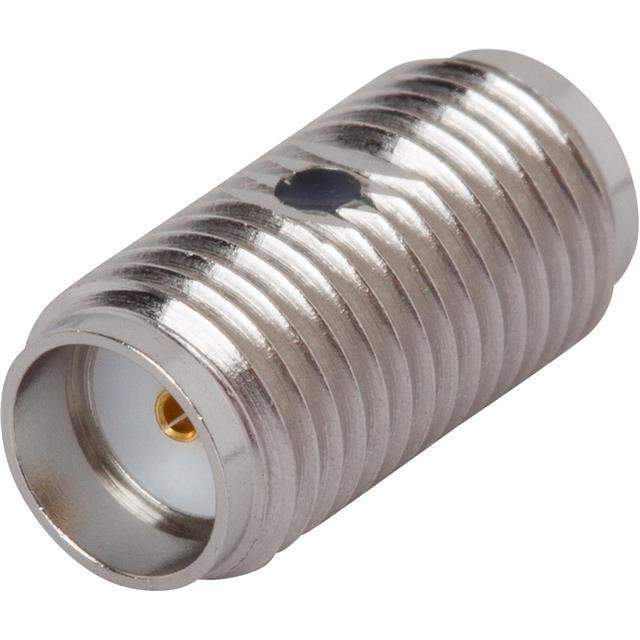

SF2992-6001 Real Image
Same model may have multiple batches, images only for reference.

SF2992-6001

Part No SF2992-6001
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Adapters
Description CONN ADAPT JACK-JACK SMA 50 OHM / Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50Ohm
Datasheet
SF2992-6001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF) - Adapters
Mfr Amphenol SV Microwave
Series SMA
Package Bulk
Adapter Type Jack to Jack
Conversion Type Same Series
Adapter Series SMA to SMA
Center Gender Female to Female
Convert From (Adapter End) SMA Jack, Female Socket
Convert To (Adapter End) SMA Jack, Female Socket
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Threaded, Threaded
Frequency - Max 18 GHz
Center Contact Plating Gold
Body Material Stainless Steel
Center Contact Material Beryllium Copper
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 500
Base Product Number SF2992
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 250
Win Source Part Number 965565-SF2992-6001
Ultra Librarian 3D Model Ultra Librarian SF2992-6001 CAD Model

Description

The SMA series of connectors from Amphenol SV Microwave is a range of coaxial connectors that are ideal for use in a variety of applications.

  • Configuration: Jack to jack
  • Fastening Type: Threaded, threaded
  • Frequency Range: Up to 18 GHz
  • Impedance: 50Ohm
  • Body Material: Stainless steel
  • Center Contact Material: Beryllium copper
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mating Cycle: 500
  • Mounting Type: Free hanging (in-line)
  • Temperature Range: -
  • Packaging: Bulk
