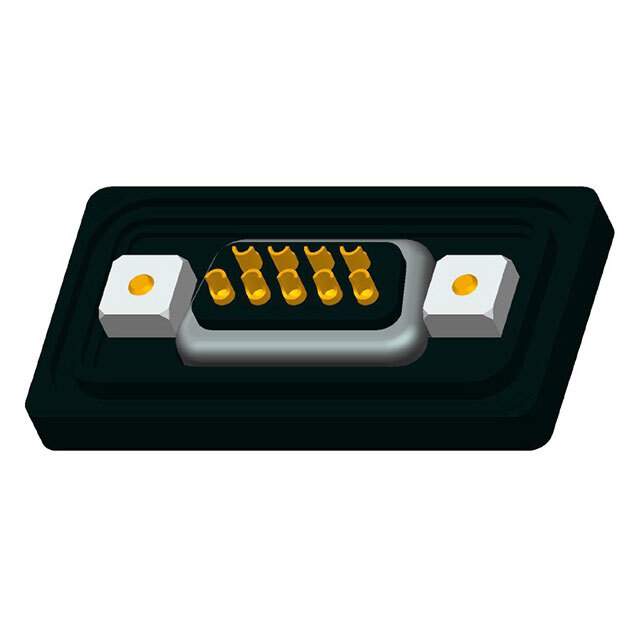

SDB-09PMMS-SL8001 Real Image
Same model may have multiple batches, images only for reference.

SDB-09PMMS-SL8001

Part No SDB-09PMMS-SL8001
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS PNL MNT / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Amphenol LTW
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder Cup
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating (Amps) 5A
Features Grounding Indents, Shielded
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Wire Gauge 22-26 AWG
Contact Material Copper Alloy
Temperature Range - Operating -40°C ~ 105°C
Base Product Number SDB-09PMMS
Standard Package 30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1349954-SDB-09PMMS-SL8001
Ultra Librarian 3D Model Ultra Librarian SDB-09PMMS-SL8001 CAD Model

Description

The Amphenol LTW D-Sub connector assembly is a male pin plug connector with 9 positions. It is manufactured by Amphenol LTW.

  • Positions: 9
  • Dielectric Material: Polybutylene terephthalate (PBT)
  • Shell Material: Steel, nickel-plated
  • Temperature Range: -40°C to 105°C
  • IP Rating: IP68 dust tight and waterproof
  • Mounting: Panel mount
  • Shielding: Shielded
  • Contact Material: Copper alloy
  • Wire Gauge: 22-26 AWG
