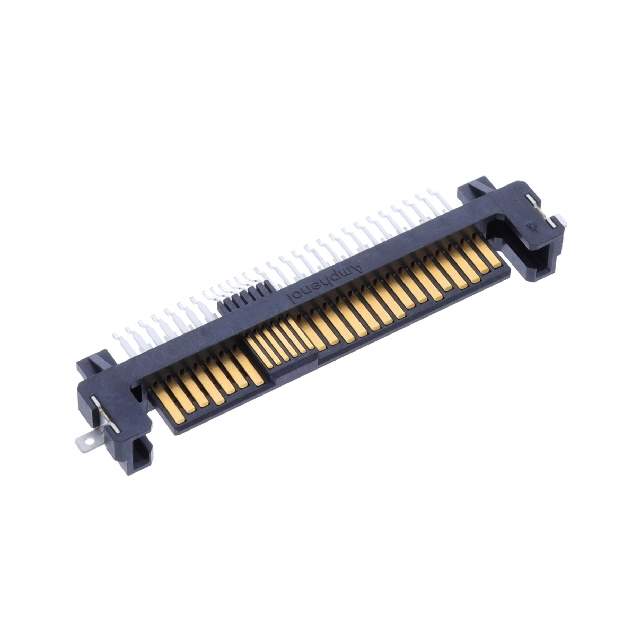

PSASM2130391TR Real Image
Same model may have multiple batches, images only for reference.

PSASM2130391TR

Part No PSASM2130391TR
Manufacturer Amphenol
Catalog Pluggable Connectors
Description SAS PCIE,12G, 68PIN, PLUG, RIGHT / 68 Position SAS/PCIe Plug Connector Solder Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr Amphenol ICC (FCI)
Package Tape & Reel
Connector Style Plug
Connector Type SAS/PCIe
Number of Positions 68
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide, Flange
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number PSASM
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-PSASM2130391CT,609-PSASM2130391TR,609-PSASM2130391DKR
Standard Package 500
Win Source Part Number 1086061-PSASM2130391TR
Ultra Librarian 3D Model Ultra Librarian PSASM2130391TR CAD Model

Description

The Amphenol 1086061-PSASM2130391TR is a pluggable connector with 68 positions.

  • Mounting: Surface mounted
  • Angle: Right-angled
  • Termination: Soldered
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin
  • Package: Tape and reel
  • Standard Package: 500 units
  • Category: Connectors and interconnects
  • RoHS Compliant: Yes
  • Manufacturer: Amphenol ICC (FCI)
