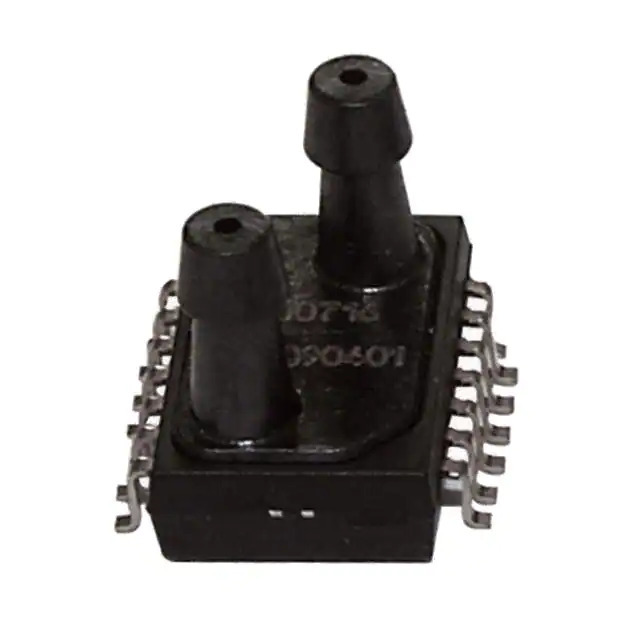

NPA-500B-10WD Amphenol
Same model may have multiple batches, images only for reference.

NPA-500B-10WD

Part No NPA-500B-10WD
Manufacturer Amphenol
Catalog Pressure Sensors, Transducers
Description SENSOR 0.36PSID 0.12" 4.5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Amphenol NovaSensor
Series NPA-500
Package Tape & Reel
Product Status Active
Applications Board Mount
Pressure Type Differential
Operating Pressure 0.36PSI (2.49kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±1.5%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.12" (3mm) Tube, Dual
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style Gull Wing
Maximum Pressure 35PSI (241.32kPa)
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 14-SOIC Module, Top Port
Supplier Device Package -
Base Product Number NPA-500B
MSL Level 5A (24 Hours)
ECCN EAR99
HTSUS 9026.20.8000
Win Source Part Number 1375637-NPA-500B-10WD
Ultra Librarian 3D Model Ultra Librarian NPA-500B-10WD CAD Model

Description

The Amphenol NovaSensor NPA-500B-10WD is a pressure sensor designed for board mount applications.

  • Output Type: Amplified
  • Features: Temperature Compensated
  • Voltage - Supply: 4.75V ~ 5.25V
  • Output: Analog Voltage
  • Voltage - Output (Min, Max): 0.5V ~ 4.5V
  • Operating Pressure: 0.36PSI
  • Max Pressure: 35PSI
  • Mounting Type: Surface Mount
  • Package / Case: 14-SOIC Module
  • Port Style: Top Port
  • Pressure Type: Differential
  • Port Size: Male - 0.12" (3mm) Tube, Dual
  • Accuracy: ±1.5%
  • Operating Temperature: -40°C ~ 125°C
  • Series: NPA-500
  • Status: Active
