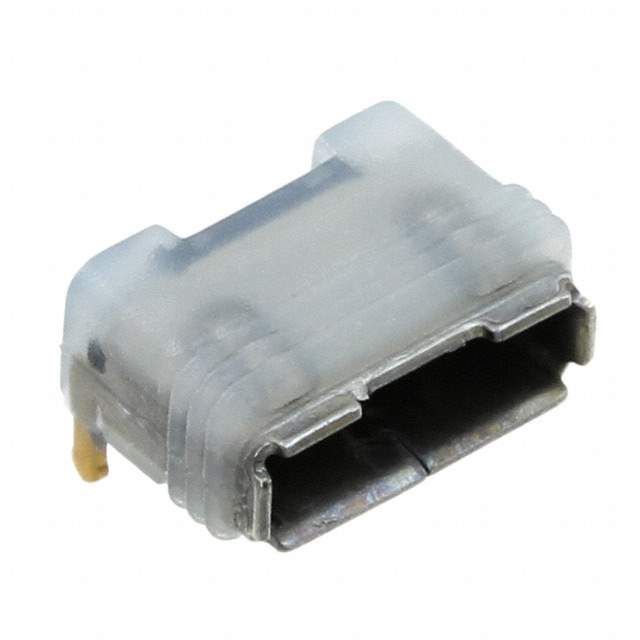

MUC-20PFFR-JS7002 Real Image
Same model may have multiple batches, images only for reference.

MUC-20PFFR-JS7002

Part No MUC-20PFFR-JS7002
Manufacturer Amphenol
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MICRO AB SMD RA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 14 Weeks
Features USB - micro AB USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Manufacturer AMPHENOL
Series SWIFT
Package Reel - TR
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name MUC-20PFFR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 1754-1194-2, MUC-20PFFR-JS7002-ND, 1754-1194-6, 1754-1194-1
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 886499-MUC-20PFFR-JS7002
Ultra Librarian 3D Model Ultra Librarian MUC-20PFFR-JS7002 CAD Model

Description

The Amphenol SWIFT MUC-20PFFR-JS7002 is a connector electronic component that features USB - micro AB USB 2.0 receptacle connector with 5 positions and surface mount, right angle mounting.

  • Type: USB - micro AB USB 2.0 receptacle connector
  • Positions: 5
  • Mounting: Surface mount, right angle
  • Supply and Demand Status: Limited
  • Manufacturer: Amphenol
  • Win Source Part Number: 886499-MUC-20PFFR-JS7002
