LD09S24A4GV00LF Amphenol
Same model may have multiple batches, images only for reference.

LD09S24A4GV00LF

Part No LD09S24A4GV00LF
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies

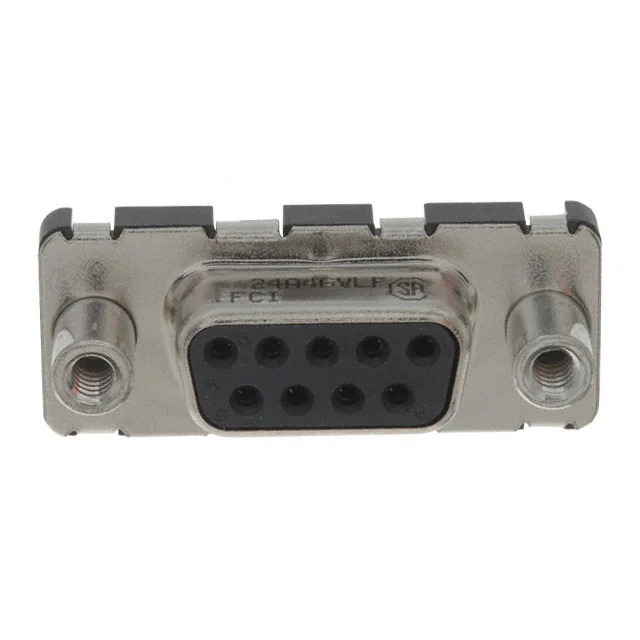

Description CONN D-SUB RCPT 9POS VERT SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Amphenol ICC (FCI)
Series LD
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Backset Spacing -
Features Board Lock
Voltage Rating 250V
Color Black
Contact Form -
Dielectric Material Thermoplastic
Wire Gauge -
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number LD09S24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365118-LD09S24A4GV00LF
Ultra Librarian 3D Model Ultra Librarian LD09S24A4GV00LF CAD Model

Description

The Amphenol ICC (FCI) LD series D-sub connector assembly with part number 1365118-LD09S24A4GV00LF is a through-hole mount receptacle with female sockets.

  • Contacts: 9 Signal
  • Rows: 2
  • Current Rating: 5A per contact
  • Temperature Range: -55°C to 105°C
  • Features: Board Lock
  • Contact Finish: Gold
  • Voltage Rating: 250V
  • Material: Thermoplastic
  • Flammability Rating: UL94 V-0
