Part No L77SDE09SA4CH4R
Manufacturer Amphenol
Catalog D - Sub Connectors

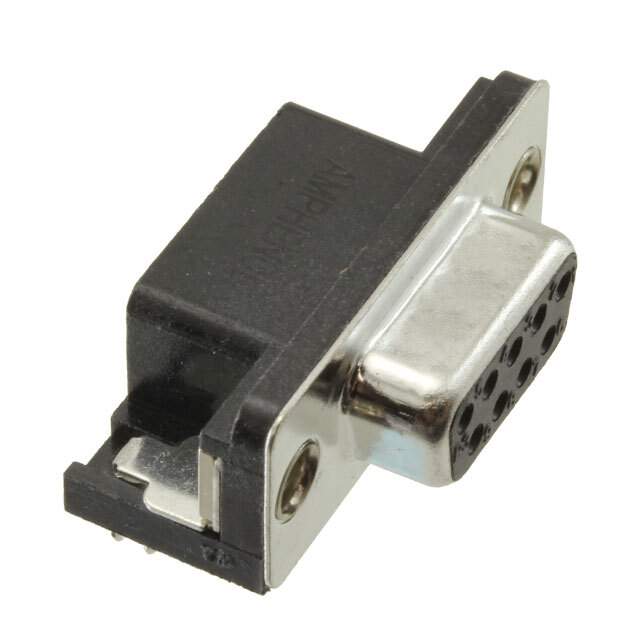

Description CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Amphenol ICC (Commercial Products)
Series SD
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Backset Spacing 0.318" (8.08mm)
Features Board Lock
Voltage Rating 250V
Color Black
Contact Form Stamped
Dielectric Material Thermoplastic, Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 125°C
Base Product Number L77SDE09
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 90
Win Source Part Number 1020817-L77SDE09SA4CH4R
Ultra Librarian 3D Model Ultra Librarian L77SDE09SA4CH4R CAD Model

Description

The SD series of connectors from Amphenol ICC (Commercial Products) features the SD connector type.

  • Connector Type: SD
  • Positions: 9
  • Rows: 2
  • Type: Receptacle
  • Contact Gender: Female sockets
  • Termination: Solder terminated
  • Board Lock: Yes
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold with flash
  • Rating: UL94 V-0
  • Temperature Range: -55°C to 125°C
  • Mounting: Through-hole, right-angle
  • Shell Size: 1 (DE, E)
  • Contact Form: Stamped
  • Voltage Rating: 250V
  • Current Rating: 5A
  • Packaging: Tray package
  • Standard Package: 90
