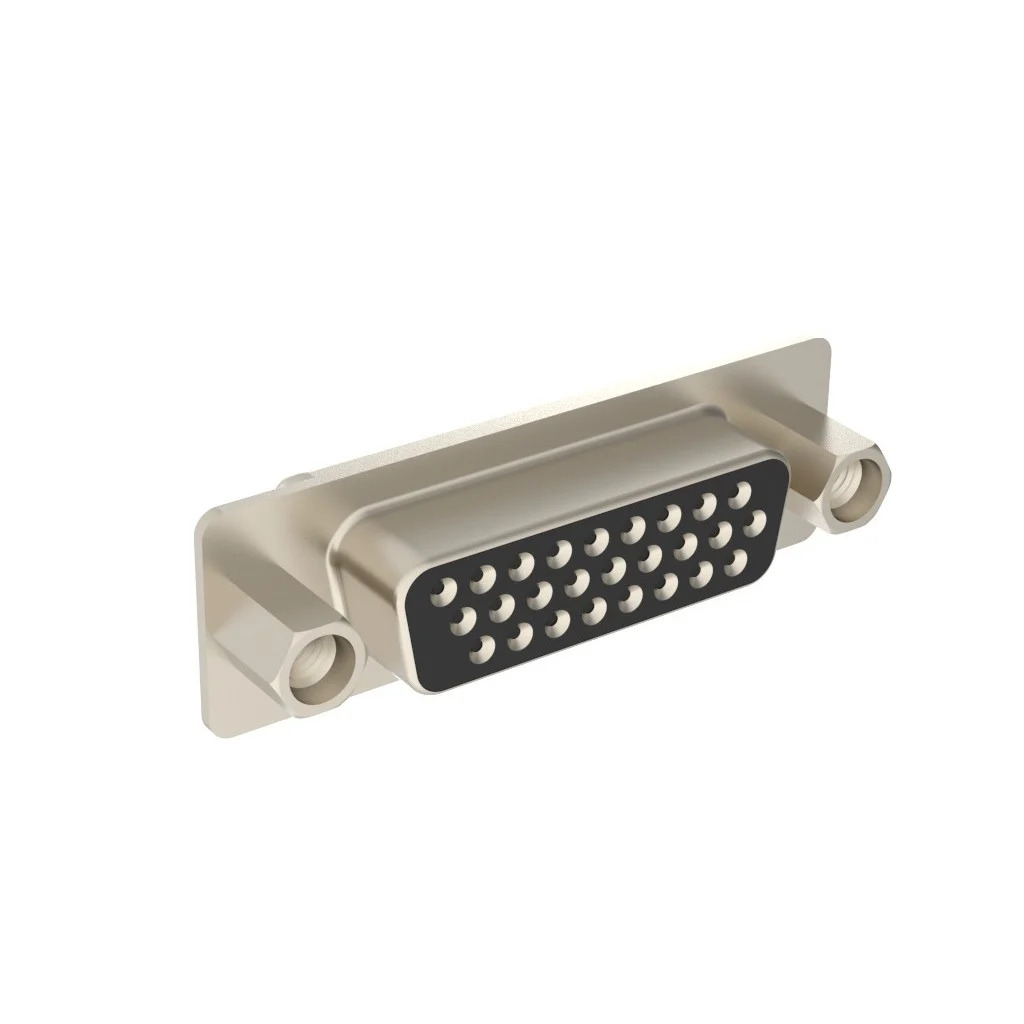

Same model may have multiple batches, images only for reference.
L77HDEH15SOL2RM5 Amphenol – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

L77HDEH15SOL2RM5

Part No L77HDEH15SOL2RM5
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB HD RCPT 15P VERT SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Features Board Lock
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1623059-L77HDEH15SOL2RM5
Ultra Librarian 3D Model Ultra Librarian L77HDEH15SOL2RM5 CAD Model
