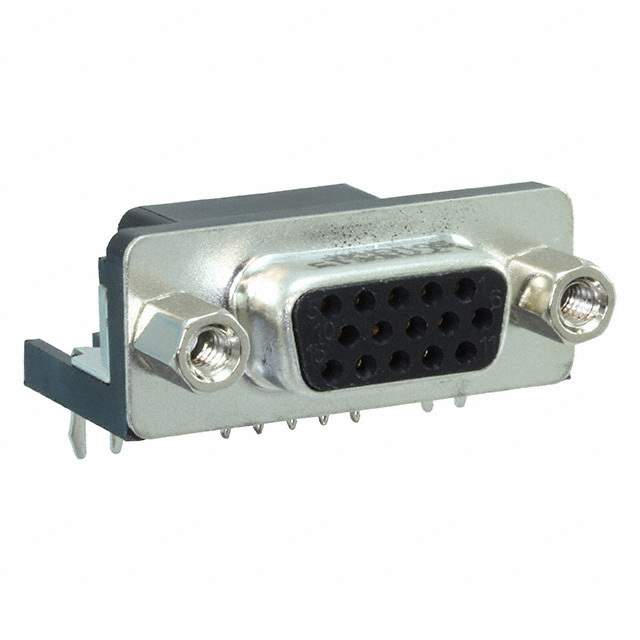

Part No L77HDE15SD1CH4F
Manufacturer Amphenol
Catalog D - Sub Connectors
Description CONN D-SUB HD RCPT 15P R/A SLDR  /  15 Position D-Sub, High Density Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Amphenol ICC (Commercial Products)
Series HD
Package Tray
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing 0.350" (8.89mm)
Features Board Lock, Grounding Tabs
Voltage Rating 250V
Color Black
Contact Form Stamped
Dielectric Material Thermoplastic, Glass Filled
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number L77HDE15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 90
Win Source Part Number 1224635-L77HDE15SD1CH4F
Ultra Librarian 3D Model Ultra Librarian L77HDE15SD1CH4F CAD Model

Description

The Amphenol 1224635-L77HDE15SD1CH4F is a high-density D-Sub connector.

  • Positions: 15
  • Rows: 3
  • Contact Finish: Gold
  • Finish Thickness: Flash
  • Connector Type: Receptacle
  • Sockets: Female
  • Temperature Range: -55°C ~ 105°C
  • Current Rating: 3A
  • Flange Feature: Mating Side, Female Screwlock (4-40)
  • Category: D-Sub Connectors
