L77HDE15S Amphenol
Same model may have multiple batches, images only for reference.

L77HDE15S

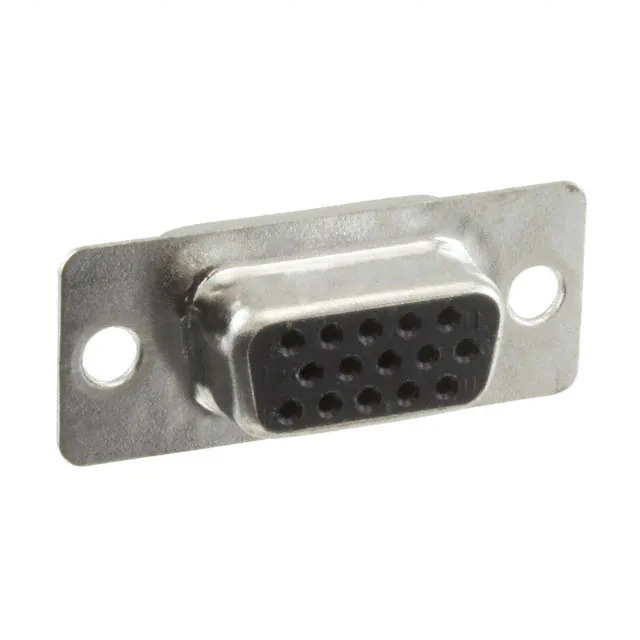

Part No L77HDE15S
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB HD RCPT 15P SLDR CUP / 15 Position D-Sub, High Density Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Amphenol ICC (Commercial Products)
Series HD
Package Tray
Product Status Active
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing -
Features -
Voltage Rating 250V
Color -
Contact Form Stamped
Dielectric Material Thermoplastic, Glass Filled
Wire Gauge -
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 155°C
Base Product Number L77HDE15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365137-L77HDE15S
Ultra Librarian 3D Model Ultra Librarian L77HDE15S CAD Model

Description

The Rib-Cage™ III header is a high-quality and reliable connector suitable for various applications from Amphenol ICC (FCI).

  • Temperature Range: -55°C ~ 130°C
  • Design: Shrouded with 4 Walls
  • Pitch: 0.050" (1.27mm)
  • Positions: 60
  • Rows: 2
  • Mounting Type: Surface Mount
  • Fastening Type: Push-Pull
  • Insulation Material: Thermoplastic, Glass-Filled
  • Contact Finish: Gold or Gold, GXT™
