L717SDE09P1ACH4F Amphenol
Same model may have multiple batches, images only for reference.

L717SDE09P1ACH4F

Part No L717SDE09P1ACH4F
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies

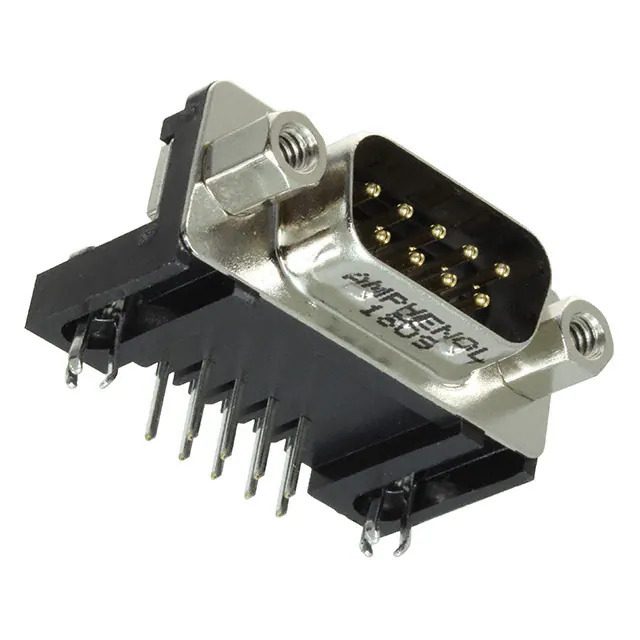

Description CONN D-SUB PLUG 9POS R/A SLDR / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Amphenol ICC (Commercial Products)
Series SD
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing 0.406" (10.30mm)
Features Board Lock, Grounding Indents
Voltage Rating 250V
Color Black
Contact Form Stamped
Dielectric Material Thermoplastic, Glass Filled
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 125°C
Base Product Number L717SDE09
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365141-L717SDE09P1ACH4F
Ultra Librarian 3D Model Ultra Librarian L717SDE09P1ACH4F CAD Model

Description

The L717SDE09P1ACH4F is an active D-Sub connector assembly from the SD series by Amphenol ICC (Commercial Products). It is designed for D-Sub connections.

  • Operating Temperature: -55°C to 125°C
  • MSL Level: 1
  • Package Type: Tray
  • Product Status: Active
  • Features: Board Lock, Grounding Indents
  • Base Product Number: L717SDE09
  • Mounting Type: Through Hole, Right Angle
  • HTSUS Code: 8536.69.4040
  • ECCN: EAR99
  • Current Rating: 3A
  • Wire Gauge: Not Specified
  • Contact Finish: Gold (Flash Thickness)
  • Color: Black
  • Connector Type: Plug (Male Pins)
  • Positions: 9
  • Rows: 2
  • Termination: Solder
  • Contact Material: Brass
  • Voltage Rating: 250V
  • Flange Feature: Mating Side, Female Screwlock (4-40)
  • Dielectric Material: Thermoplastic, Glass Filled
  • Contact Form: Stamped
  • Connector Style: D-Sub
  • Shell Size/Layout: 1 (DE, E)
  • Shell Material: Steel (Tin-Plated Finish)
  • Backset Spacing: 0.406" (10.30mm)
