Same model may have multiple batches, images only for reference.

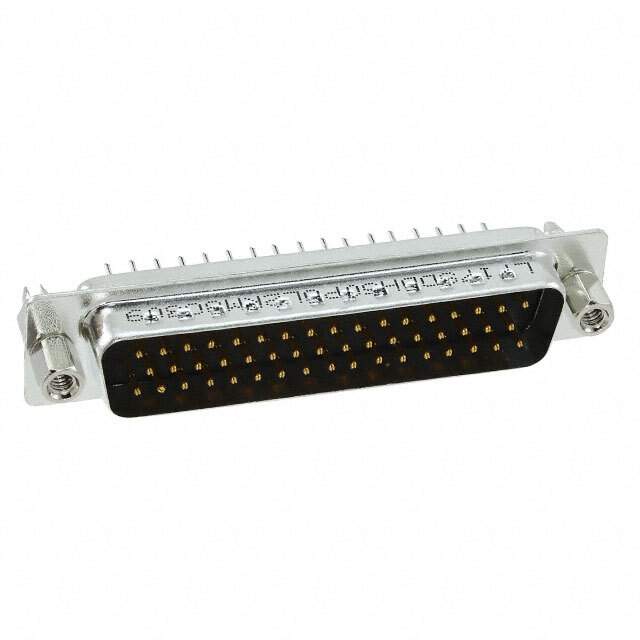

L717SDDH50POL2RM8C309 Real Image
Same model may have multiple batches, images only for reference.

L717SDDH50POL2RM8C309

Part No L717SDDH50POL2RM8C309
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 50POS VERT SLDR / 50 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Amphenol ICC (Commercial Products)
Packaging Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 50
Number of Rows 3
Mounting Through Hole
Shell Size, Connector Layout 5 (DD, D)
Contact Type Signal
Flange Feature Board Side (4-40); Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Features Board Lock, Grounding Indents
Voltage Rating 250V
Color Black
Contact Form Stamped
Dielectric Material Thermoplastic, Glass Filled
Contact Material Brass
Temperature Range - Operating -55°C ~ 125°C
Base Product Number L717SDDH50
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 40
Win Source Part Number 1333157-L717SDDH50POL2RM8C309
Ultra Librarian 3D Model Ultra Librarian L717SDDH50POL2RM8C309 CAD Model

Description

The Amphenol ICC (Commercial Products) D-Sub Connector Assemblies is a 50-position plug connector that features male pins contact type.

  • Feature: Grounding Indents, Board Lock
  • Mounting: Through-Hole
  • Shell Size: 5 (DD, D)
  • Shell Material: Steel
  • Shell Finish: Tin-Plated
  • Voltage Rating: 250V
  • Current Rating: 5A
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Form: Stamped
  • Temperature Range: -55°C ~ 125°C
  • RoHS: Compliant
  • Contact Material: Brass
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 40
  • Color: Black
