Part No L17H2220131
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies

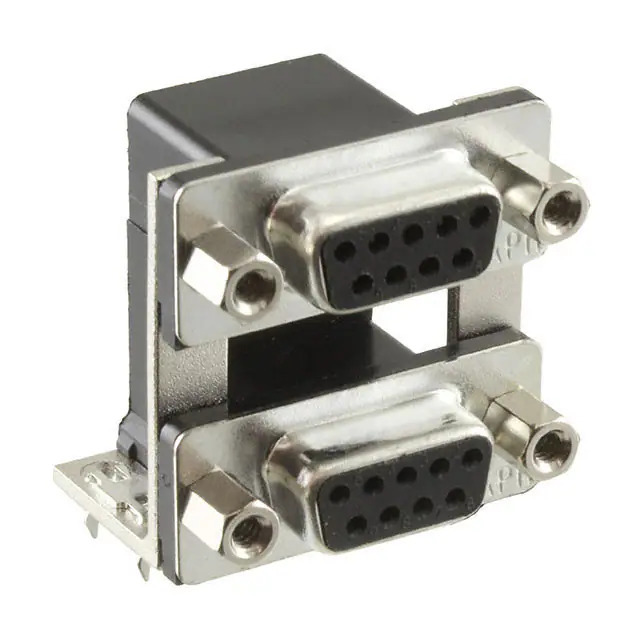

Description CONN D-SUB RCPT 9POS R/A SLDR / 9, 9 Position D-Sub - Stacked Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Amphenol ICC (Commercial Products)
Series 17H
Package Tray
Product Status Active
Connector Style D-Sub - Stacked
Connector Type Receptacle, Female Sockets
Number of Positions 9, 9
Number of Rows 2, 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E); 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Shielded
Voltage Rating 250V
Color Black
Contact Form Stamped
Dielectric Material Thermoplastic, Glass Filled
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number L17H22
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365133-L17H2220131
Ultra Librarian 3D Model Ultra Librarian L17H2220131 CAD Model

Description

The Amphenol ICC (Commercial Products) 17H series D-Sub connector assembly is a versatile and reliable connector for various electronic applications.

  • Temperature Range: -55°C to 105°C
  • Connector Type: Receptacle, Female Sockets
  • Positions per Row: 9
  • Number of Rows: 2
  • Contact Material: Brass
  • Contact Finish: Gold
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Mounting Type: Through Hole, Right Angle
  • Features: Flange
  • Dielectric Material: Thermoplastic and Glass-Filled
  • Features: Board Lock, Shielded
