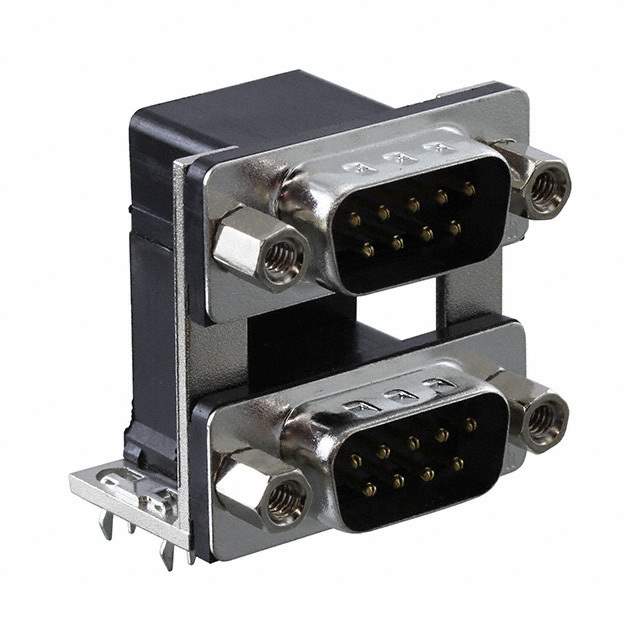

L17H2110131 Real Image
Same model may have multiple batches, images only for reference.

L17H2110131

Part No L17H2110131
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS R/A SLDR / 9, 9 Position D-Sub - Stacked Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Amphenol ICC (Commercial Products)
Packaging Tray
Connector Style D-Sub - Stacked
Connector Type Plug, Male Pins
Number of Positions 9, 9
Number of Rows 2, 2
Mounting Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E); 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Grounding Indents, Shielded
Voltage Rating 250V
Color Black
Contact Form Stamped
Dielectric Material Thermoplastic, Glass Filled
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number L17H21
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 45
Win Source Part Number 1333147-L17H2110131
Ultra Librarian 3D Model Ultra Librarian L17H2110131 CAD Model

Description

The Amphenol ICC (Commercial Products) L17H2110131 is a 9-position D-sub connector assembly designed for use in through-hole and right angle mounting applications.

  • Design: Stacked design
  • Feature: Board lock
  • Contact Material: Brass, Gold finish
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Temperature Range: -55°C to 105°C
  • Packaging: Tray
  • RoHS Compliant: Yes
  • Material Flammability Rating: UL94 V-0
