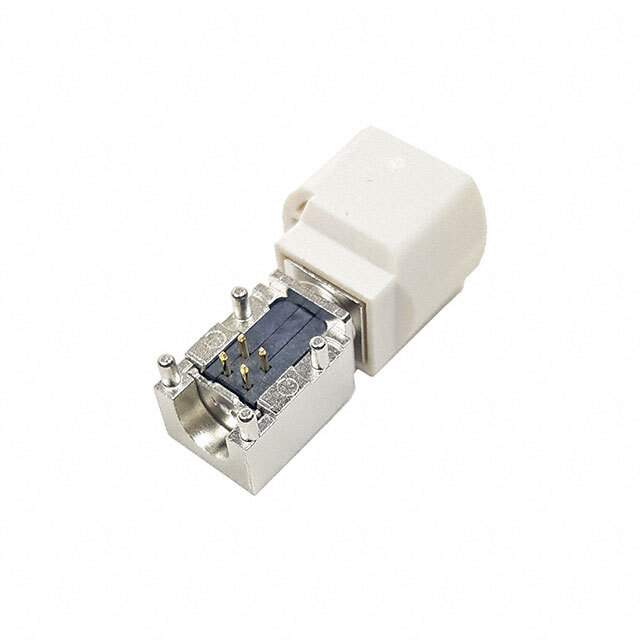

HSDWBRPPCB12B Real Image
Same model may have multiple batches, images only for reference.

HSDWBRPPCB12B

Part No HSDWBRPPCB12B
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN HSD+0 R/A PLUG B CODE / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Amphenol ICC (Commercial Products)
Packaging Tray
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Through Hole, Right Angle
Fastening Type Latch Lock
Number of Ports 1
Features Code B
Housing Color White
Center Contact Material Copper Alloy
Body Material Zinc Alloy
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Thermoplastic
Temperature Range - Operating -40°C ~ 105°C
Mating Cycles 25
Base Product Number HSDWBRPPCB
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 70
Win Source Part Number 1331944-HSDWBRPPCB12B
Ultra Librarian 3D Model Ultra Librarian HSDWBRPPCB12B CAD Model

Description

The Amphenol ICC (Commercial Products) 1331944-HSDWBRPPCB12B is a Coaxial Connector (RF) Assemblies plug, male pin with latch lock fastening type.

  • Connector Type: Plug, male pin
  • Fastening Type: Latch lock
  • Contact Termination: Solder
  • Connector Style: HSD®, Fakra, Quadraxial
  • Body Material: Zinc alloy
  • Body Finish: Nickel
  • Impedance: 100Ohm
  • Mating Cycle: 25
  • Temperature Range: -40°C to 105°C
  • Standard Package: 70
  • Mounting: Through hole, right angle
