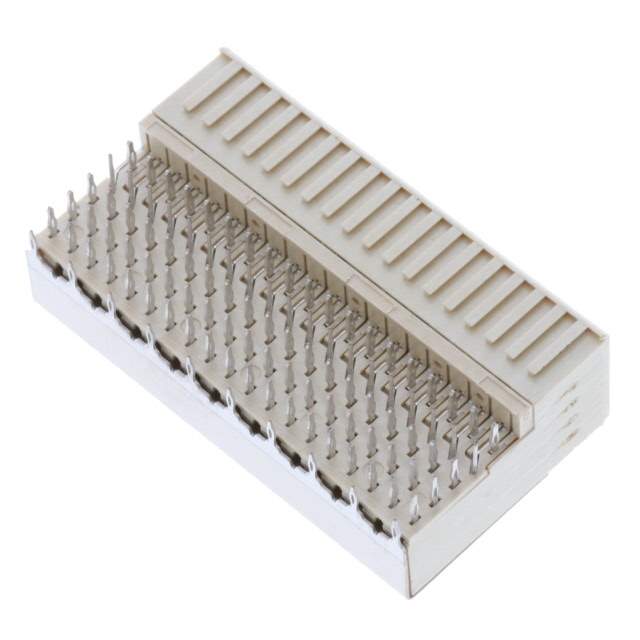

HM2R71PA5108N9LF Real Image
Same model may have multiple batches, images only for reference.

HM2R71PA5108N9LF

Part No HM2R71PA5108N9LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN RECEPT 95POS 2MM PRESS-FIT / 95 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Hard Metric, Standard
Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Type Receptacle, Female Sockets
Connector Style B 19
Number of Positions 95
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.5 A
Voltage Rating 750Vrms
Temperature Range - Operating -55°C ~ 125°C
Features Upper Shield
Base Product Number HM2R71
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-5419,HM2R71PA5108N9LF-ND
Standard Package 36
Win Source Part Number 1333234-HM2R71PA5108N9LF
Ultra Librarian 3D Model Ultra Librarian HM2R71PA5108N9LF CAD Model

Description

The HM2R71PA5108N9LF from Amphenol ICC (FCI) is a backplane connector with a hard metric, standard category.

  • Packaging: Tray
  • Positions: 95
  • Voltage Rating: 750Vrms
  • Current Rating: 1.5A
