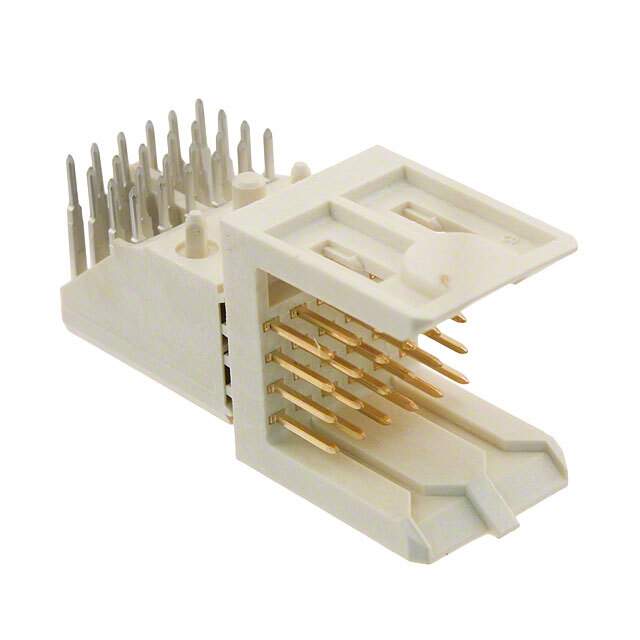

HM1L41AAP000H6PLF Real Image
Same model may have multiple batches, images only for reference.

HM1L41AAP000H6PLF

Part No HM1L41AAP000H6PLF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN HEADER 24POS EDGE MNT / 24 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Natural, White
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr Amphenol ICC (FCI)
Series Metral®
Package Tray
Connector Type Header, Male Pins
Number of Positions 24
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 4
Mounting Type Board Edge, Through Hole, Right Angle
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Natural, White
Current Rating (Amps) 1A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HM1L41
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-3602,HM1L41AAP000H6PLF-ND
Standard Package 120
Win Source Part Number 1026622-HM1L41AAP000H6PLF
Ultra Librarian 3D Model Ultra Librarian HM1L41AAP000H6PLF CAD Model

Description

The Amphenol ICC (FCI) 1026622-HM1L41AAP000H6PLF is a backplane connector with 24 positions and a pitch of 0.079" (2.00mm).

  • The connector has a natural and white color with a board guide feature.
  • The connector has a header male pins connector type and is loaded with all positions.
  • The connector has 4 rows and a solder termination with a gold contact finish with a thickness of 30.0µin (0.76µm).
  • The connector has a tray package type and a current rating of 1A.
