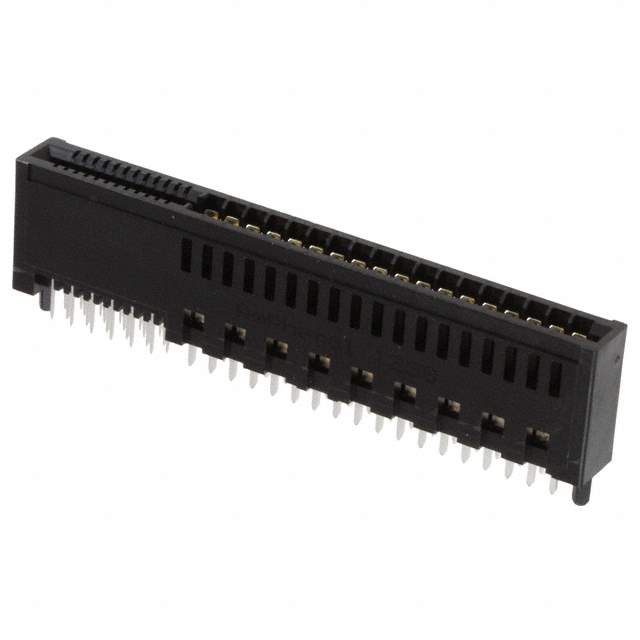

GPCE24362411HR Real Image
Same model may have multiple batches, images only for reference.

GPCE24362411HR

Part No GPCE24362411HR
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 60POS GOLD / 60 Position Female Connector Non Specified - Dual Edge Gold Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Amphenol ICC (Commercial Products)
Series Energy Edge®
Package Tray
Product Status Obsolete
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 60
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Read Out Dual
Features Board Lock
Mounting Type Through Hole
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Material - Insulation Thermoplastic
Base Product Number GPCE
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-GPCE24362411HR
Standard Package 500
Win Source Part Number 1194453-GPCE24362411HR
Ultra Librarian 3D Model Ultra Librarian GPCE24362411HR CAD Model

Description

The Amphenol electronic component with the Win Source Part Number 1194453-GPCE24362411HR is a card edge connector suitable for use in various electronic applications.

  • Positions: 60
  • Feature: Board lock
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Standard Package: 500
  • Status: Obsolete
  • Card Type: Non-specified dual-edge
  • Temperature Range: -
