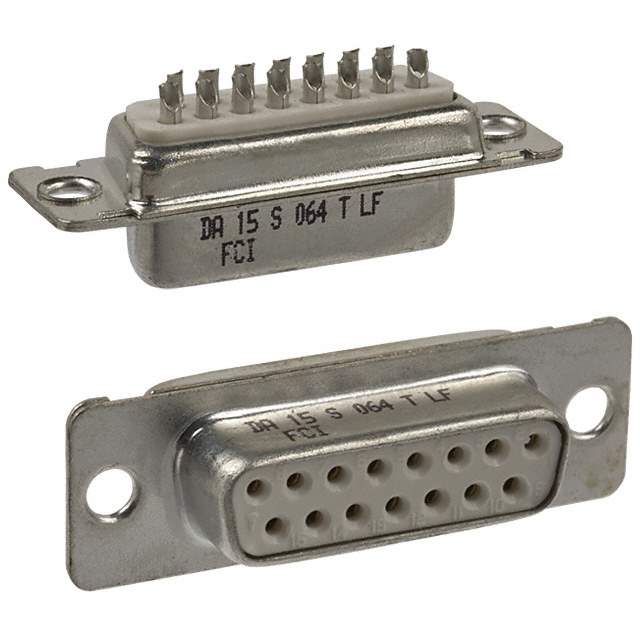

DA15S064TLF Real Image
Same model may have multiple batches, images only for reference.

DA15S064TLF

Part No DA15S064TLF
Manufacturer Amphenol
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 15POS SLDR CUP / 15 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Amphenol ICC (FCI)
Series D
Package Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Voltage Rating 300V
Color Natural
Dielectric Material Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number DA15S064
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.8000
Other Names 609-1513
Standard Package 100
Win Source Part Number 1002773-DA15S064TLF
Ultra Librarian 3D Model Ultra Librarian DA15S064TLF CAD Model

Description

The Amphenol D-sub connector is a high-quality connector designed for use in electronic devices. The manufacturer is Amphenol.

  • Positions: 15
  • Rows: 2
  • Termination: Solder Cup
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Voltage Rating: 300V
  • Mounting Type: Free Hanging (In-Line)
  • Current Rating: 5A per Contact
  • Material Flammability: UL94 V-0
  • Connector Type: D-Sub
