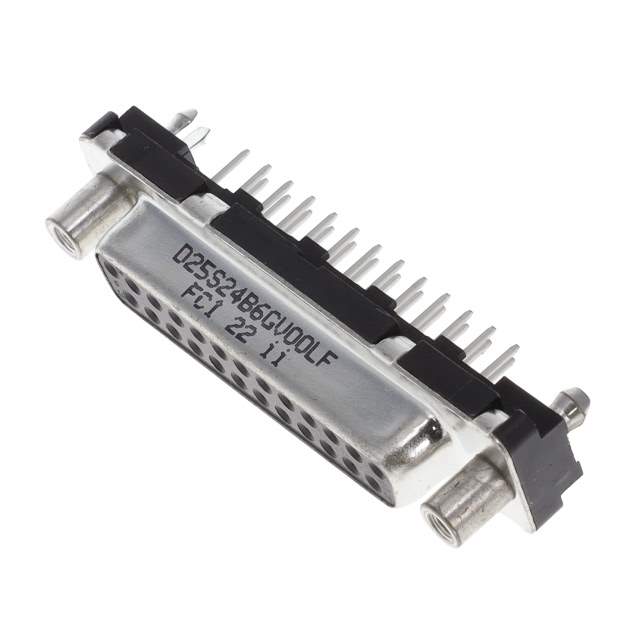

The Amphenol ICC (FCI) D25S24B6GV00LF is a Delta D series 25-position black D-sub connector with a receptacle, female sockets connector type.

• Features: board lock, signal contact type, two rows, and solder termination
• Contact Finish: gold with a thickness of 30.0μin (0.76μm)
• Connector Style: D-Sub
• Voltage Rating: 300V
• Shell Material: steel
• Shell Finish: tin-nickel plated
• Dielectric Material: Polybutylene Terephthalate (PBT)
• Shell Size and Connector Layout: 3 (DB, B)
• Mounting Type: through-hole
• Operating Temperature Range: -55°C to 125°C
• Current Rating: 5A per contact
• Package: 20 connectors
• Features: flange feature on the mating side with a female screw lock (4-40)
• Contact Material: Phosphor Bronze
• REACH: unaffected
