Same model may have multiple batches, images only for reference.

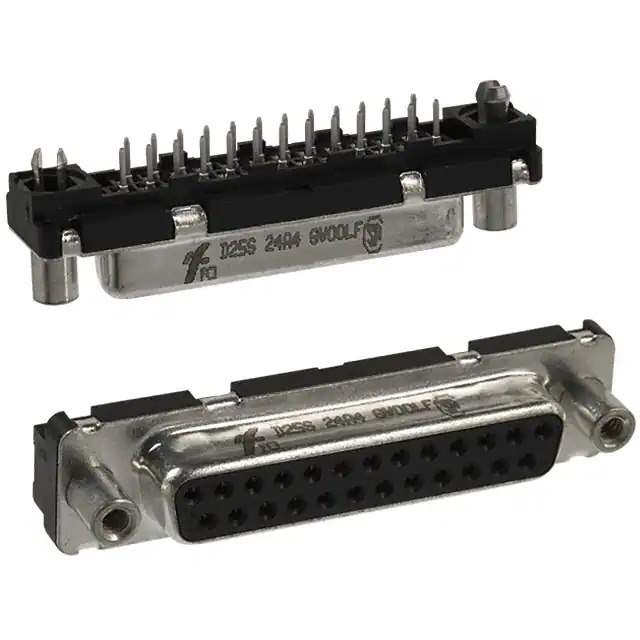

D25S24A4GV00LF Real Image
Same model may have multiple batches, images only for reference.

D25S24A4GV00LF

Part No D25S24A4GV00LF
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 25POS VERT SLDR / 25 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Amphenol
Series Delta D
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Features Board Lock
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 125°C
Base Product Number D25S24
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 583437-D25S24A4GV00LF
Ultra Librarian 3D Model Ultra Librarian D25S24A4GV00LF CAD Model

Description

The 583437-D25S24A4GV00LF is a D-sub connector assembly from the Delta D series by Amphenol.

  • Manufacturer: Amphenol
  • Product Name: 583437-D25S24A4GV00LF
  • Series: Delta D
  • Positions: 25
  • Color: black
  • Type: receptacle with female sockets
  • Contact Finish: gold with flash thickness
  • Application: signal transmission
  • Voltage Rating: 300V
  • Shell Material: steel with a tin-nickel plated finish
  • Dielectric Material: polybutylene terephthalate (PBT)
  • Mounting: through-hole
  • Operating Temperature: -55°C to 125°C
  • Feature: board lock
  • Current Rating: 5A per contact
