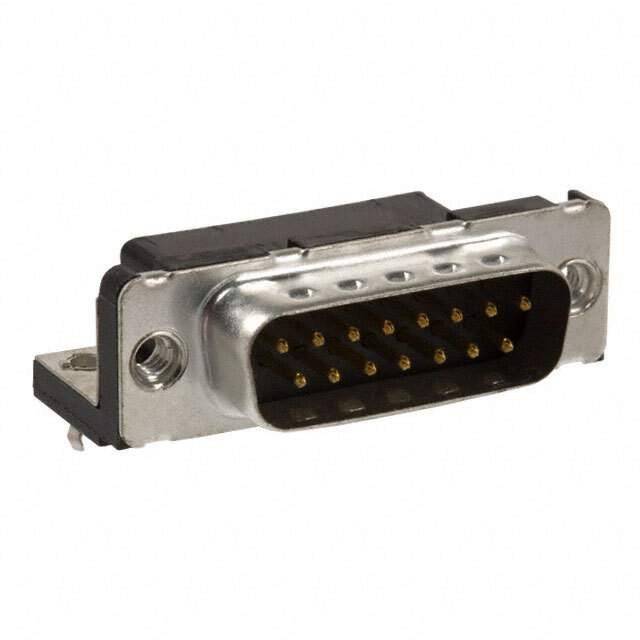

D15P13A4GX00LF Real Image
Same model may have multiple batches, images only for reference.

D15P13A4GX00LF

Part No D15P13A4GX00LF
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 15POS R/A SLDR / 15 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Mounting Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Backset Spacing 0.409" (10.40mm)
Features Board Lock, Grounding Indents, Mounting Brackets
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Brass
Temperature Range - Operating -55°C ~ 125°C
Base Product Number D15P13
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-1490
Standard Package 25
Win Source Part Number 1333206-D15P13A4GX00LF
Ultra Librarian 3D Model Ultra Librarian D15P13A4GX00LF CAD Model

Description

The Amphenol ICC (FCI) 1333206-D15P13A4GX00LF is a high-quality D-sub connector assembly designed for use in various electronic applications.

  • Connector Type: Plug with Male Pins
  • Mounting Style: Through-Hole, Right-Angle
  • Number of Positions: 15
  • Voltage Rating: 300V
  • Temperature Range: -55°C to 125°C
  • Current Rating: 5A per Contact
  • RoHS Compliant: Yes
