Same model may have multiple batches, images only for reference.

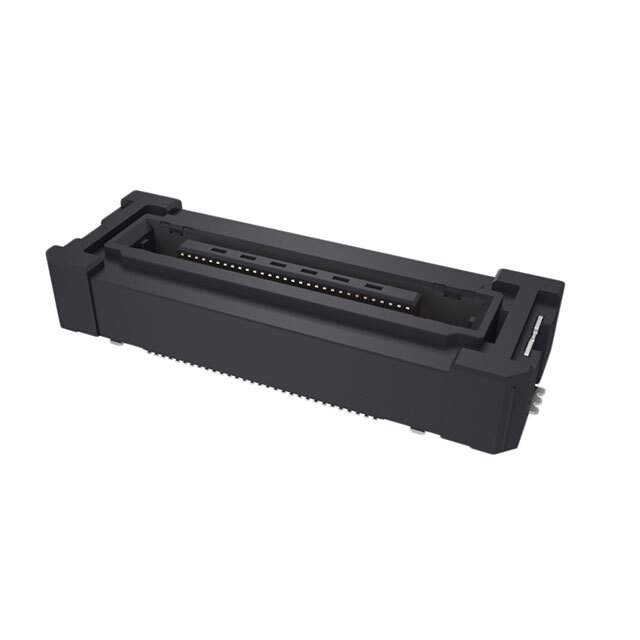

B3291B7L111260E100 Real Image
Same model may have multiple batches, images only for reference.

B3291B7L111260E100

Part No B3291B7L111260E100
Manufacturer Amphenol
Catalog Rectangular Connectors
Description FBTB P0.5 ,60P, RECEPTACLE, SPOT / 60 Position Connector Receptacle, Floating Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Amphenol ICC (FCI)
Package Tape & Reel
Connector Type Receptacle, Floating
Number of Positions 60
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Height Above Board 0.197" (5.00mm)
Base Product Number B3291B7L
Standard Package 700
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340945-B3291B7L111260E100
Ultra Librarian 3D Model Ultra Librarian B3291B7L111260E100 CAD Model

Description

The Amphenol ICC (FCI) 1340945-B3291B7L111260E100 is a 60-position floating receptacle connector with a pitch of 0.020" (0.50mm). Amphenol ICC (FCI) manufactures this connector.

  • Positions: 60
  • Type: Floating Receptacle
  • Pitch: 0.020" (0.50mm)
  • Features: Board Guide, Solder Retention
  • Height Above Board: 0.197" (5.00mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 125°C
  • RoHS Compliant: Yes
