Same model may have multiple batches, images only for reference.

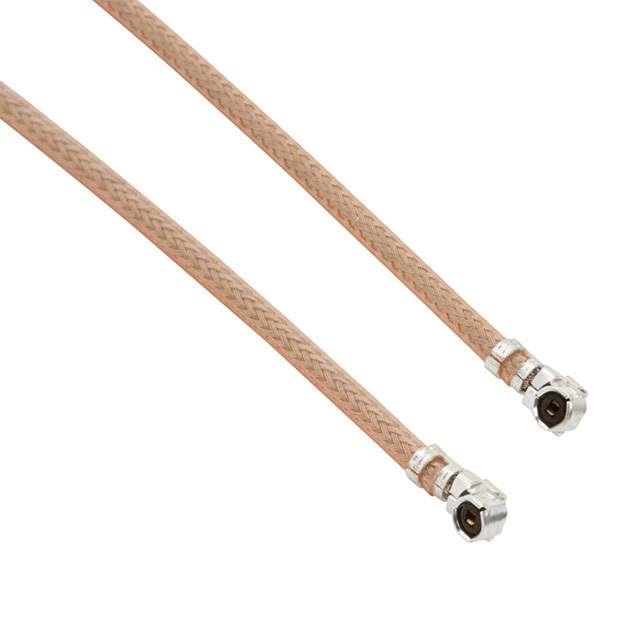

A-1PA-178-300N2 Real Image
Same model may have multiple batches, images only for reference.

A-1PA-178-300N2

Part No A-1PA-178-300N2
Manufacturer Amphenol
Catalog Coaxial Cables (RF)
Description CBL ASSY UMCC PLUG RG178 11.811" / Cable Assembly Coaxial U.FL (UMCC), AMC to U.FL (UMCC), AMC RG-178 11.811" (300.00mm)
Datasheet
A-1PA-178-300N2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Coaxial Cables (RF)
Mfr Amphenol RF
Package Bag
Style U.FL (UMCC), AMC to U.FL (UMCC), AMC
1st Connector U.FL (UMCC), AMC Plug, Right Angle
2nd Connector U.FL (UMCC), AMC Plug, Right Angle
1st Contact Gender Female
2nd Contact Gender Female
Length 11.811" (300.00mm)
Cable Type RG-178
Cable Impedance 50 Ohms
Overall Impedance 50 Ohms
Frequency - Max 3 GHz
Color Natural
Features Shielded
Temperature Range - Operating -40°C ~ 90°C
Base Product Number A-1PA-178
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8544.20.0000
Other Names ARF2257,A-1PA-178-300B2
Standard Package 1
Win Source Part Number 1225048-A-1PA-178-300N2
Ultra Librarian 3D Model Ultra Librarian A-1PA-178-300N2 CAD Model

Description

The Amphenol RF 1225048-A-1PA-178-300N2 is a cable assembly designed for use in coaxial cables (RF).

  • Length: 11.811" (300.00mm)
  • Cable Type: RG-178
  • Frequency - Max: 3 GHz
  • Style: U.FL (UMCC), AMC to U.FL (UMCC), AMC
  • First Connector: U.FL (UMCC), AMC plug, right angle
  • Second Connector: U.FL (UMCC), AMC plug, right angle
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH affected
  • ECCN: EAR99
  • HTSUS: 8544.20.0000
