Same model may have multiple batches, images only for reference.

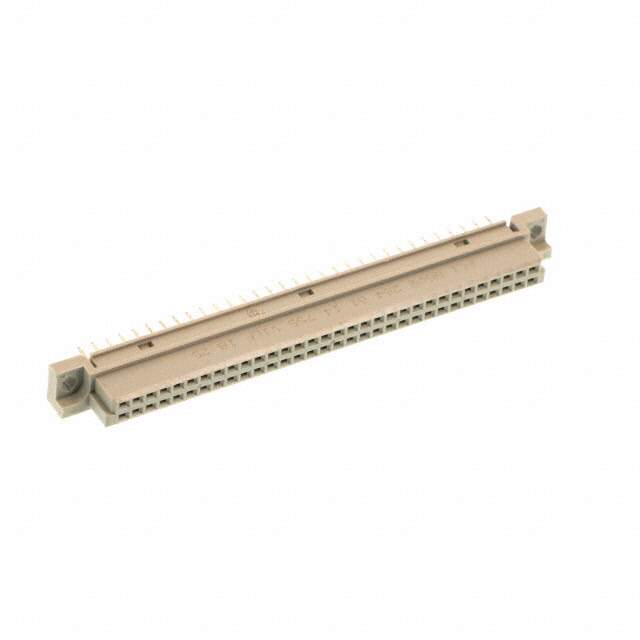

86092646114755V1LF Real Image
Same model may have multiple batches, images only for reference.

86092646114755V1LF

Part No 86092646114755V1LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN DIN RCPT 64POS PCB GOLD / 64 Position Din Connector Receptacle, Female Sockets Gold Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr Amphenol ICC (FCI)
Series 8609
Package Tray
Connector Type Receptacle, Female Sockets
Number of Positions 64
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Style B
Level, Class 2
Mounting Type Through Hole
Termination Solder
Contact Finish Gold
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 1.5A
Material Flammability Rating UL94 V-0
Material - Insulation Polyester Thermoplastic
Base Product Number 86092646114
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-5857,86092646114755V1LF-ND
Standard Package 16
Win Source Part Number 1213594-86092646114755V1LF
Ultra Librarian 3D Model Ultra Librarian 86092646114755V1LF CAD Model

Description

The 86092646114755V1LF is a DIN 41612 backplane connector manufactured by Amphenol ICC (FCI).

  • Positions: 64
  • Pitch: 0.100" (2.54mm)
  • Type: Receptacle
  • Sockets: Female
  • Load: All Positions
  • Rows: Two
  • Termination: Solder
  • Contact Finish: Gold
  • Insulation Material: Polyester Thermoplastic
  • Flammability Rating: UL94 V-0
  • Standard Package: 16
  • Series: 8609
  • Style: B
  • Level and Class: 2
  • Mounting: Through Hole
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • MSL Level: 1 (Unlimited)
  • Current Rating: 1.5A
  • REACH: Affected
