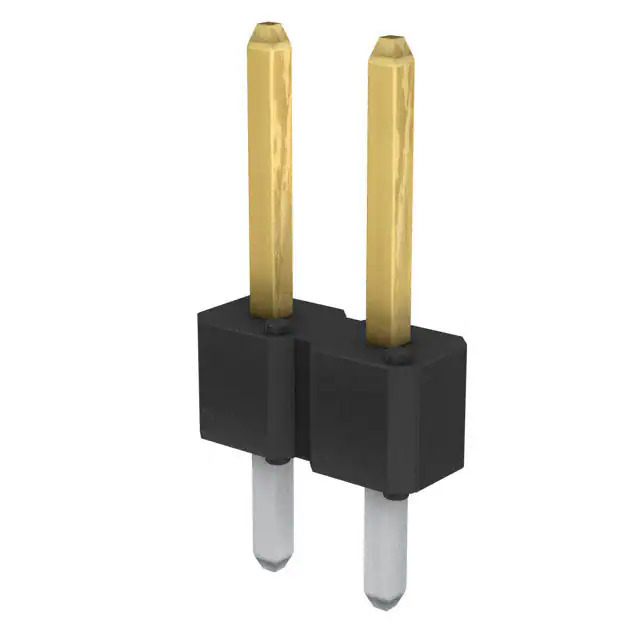

Same model may have multiple batches, images only for reference.

77311-818-02LF

Name: 77311-818-02LF
Brand: Amphenol
SKU: 1366017
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	77311-818-02LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK®
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.450" (11.43mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic
Features	-
Temperature Range - Operating	-65°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	78.7µin (2.00µm)
Applications	-
Base Product Number	77311
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1366017-77311-818-02LF
Ultra Librarian 3D Model	Ultra Librarian 77311-818-02LF CAD Model

Description

The 1181289 is a male pin header connector from Amphenol ICC (FCI).

Series: BERGSTIK
Number of Positions: 2
Number of Rows: 1
Mounting Type: Through Hole
Current Rating (Per Contact): 3A
Connector Type: Header, Male Pins
Connector Style: Board to Board
Pitch: 0.100" (2.54mm)
Shrouding: Unshrouded
Fastening Type: Push-Pull
Contact Finish: Gold or Gold, GXT™
Contact Finish Thickness: 15.0μin (0.38μm)
Insulation Material: Thermoplastic
Flammability Rating: UL94 V-0
