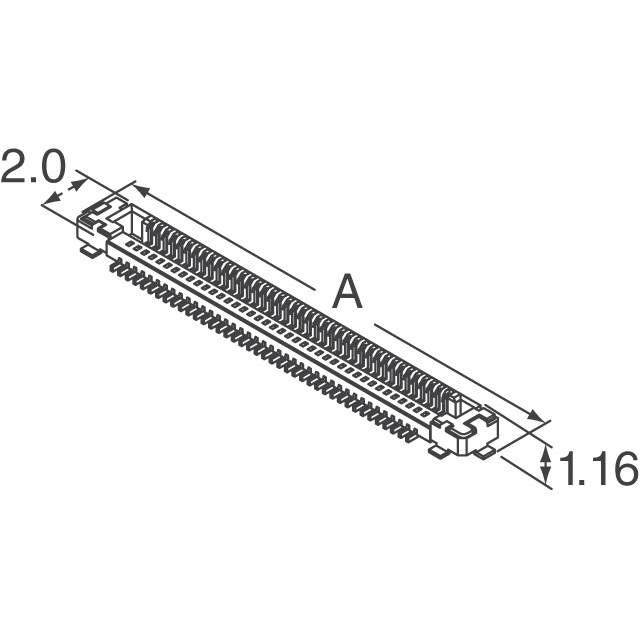

Same model may have multiple batches, images only for reference.

FI-J40S-VF15N-R3000

Name: FI-J40S-VF15N-R3000
Brand: JAE Electronics
SKU: 774579
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FI-J40S-VF15N-R3000
Manufacturer	JAE Electronics
Catalog	Rectangular Connectors
Description	CONN RCPT 0.4MM 40POS VERT SMD / Thin Wire Coaxial Connector for Small Portable Devices
Datasheet	FI-J40S-VF15N-R3000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JAE Electronics
Series	FI-J
Packaging	Reel package
Connector Type	Receptacle
Contact Type	Non-Gendered
Style	Board to Cable/Wire
Number of Positions	40
Number of Positions Loaded	All
Pitch - Mating	0.016" (0.40mm)
Number of Rows	1
Mounting	SMD
Termination	Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.9μin (0.10μm)
Insulation Color	Black
Insulation Height	0.046" (1.16mm)
Operating Temperature Range	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Mated Stacking Heights	1.58mm
Features	Pick and Place, Solder Retention
Current Rating	0.3A per Contact
Voltage Rating	50V
Applications	General
Insulation Material	Plastic
Contact Material	Copper Alloy
Contact Finish Thickness - Post	Flash
Win Source Part Number	774579-FI-J40S-VF15N-R3000
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	3k pcs
Introduction Date	November 17, 2008
ECCN	EAR99
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian FI-J40S-VF15N-R3000 CAD Model

Description

The JAE Electronics FI-J series connector is a 40 position receptacle designed for board-to-cable/wire applications.

Contact Type: non-gendered
Fastening Type: friction lock
Pitch: 0.016" (0.40mm)
Contact Finish (Mating): gold
Contact Finish (Thickness Mating): 3.9μin (0.10μm)
Contact Finish (Post): flash
Voltage Rating: 50V
Current Rating: 0.3A @ contact
Mounting: SMD
Material Flammability Rating: UL94 V-0
MSL Level: 1 (Unlimited)
ECCN: EAR99
Package Type: reel
Pieces per Package: 3k
Estimated EOL Date: 2027
