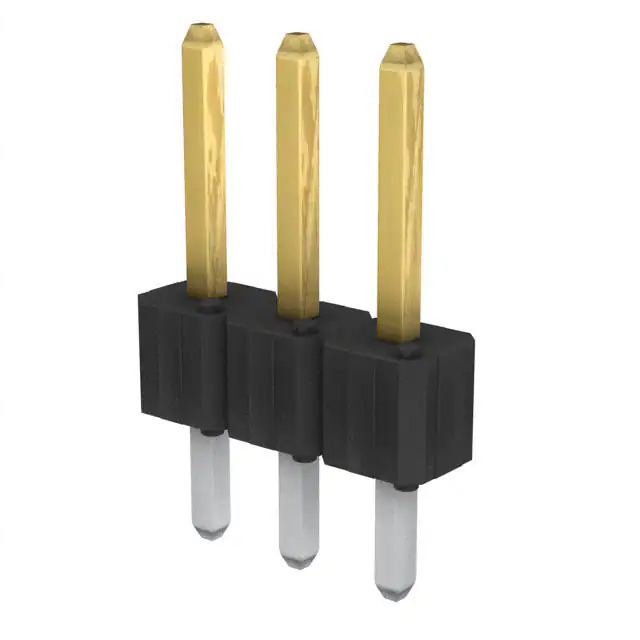

The Amphenol ICC (FCI) 68001 BERGSTIK® II Header is a board-to-board connector with a pitch of 0.100" (2.54mm). Bold the product name (e.g., BAV99S,135 → 68001 BERGSTIK® II Header) and manufacturer (e.g., Nexperia USA Inc. → Amphenol ICC (FCI)).

• Pitch: 0.100" (2.54mm)
• Fastening Type: Push-Pull
• Termination: Solder
• Number of Positions: 3
• Number of Rows: 1
• Positions Loaded: All
• Contact Material: Phosphor Bronze
• Contact Finish: Gold or Gold, GXT™
• Contact Finish Thickness: 30.0µin (0.76µm)
• Overall Contact Length: 0.450" (11.43mm)
• Mating Contact Length: 0.230" (5.84mm)
• Post Contact Length: 0.120" (3.05mm)
• Insulation Height: 0.100" (2.54mm)
• Flammability Rating: UL94 V-0
• Color: Black
• Current Rating: 3A per contact
