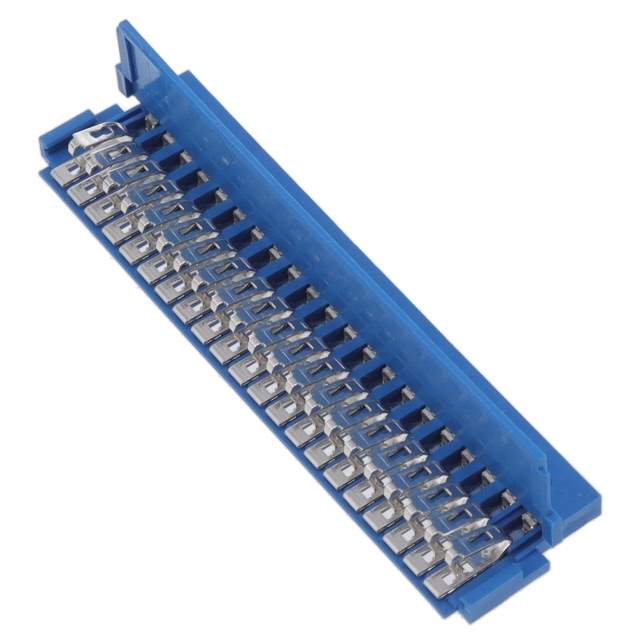

Same model may have multiple batches, images only for reference.

65801-021LF

Name: 65801-021LF
Brand: Amphenol
SKU: 1022790
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	65801-021LF
Manufacturer	Amphenol
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC FPC RCPT 21POS 2.54MM / 21 Position FFC, FPC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Amphenol ICC (FCI)
Series	Clincher™
Package	Tray
Flat Flex Type	FFC, FPC
Mounting Type	Free Hanging (In-Line)
Connector/Contact Type	Receptacle
Number of Positions	21
Pitch	0.100" (2.54mm)
Termination	Solder
FFC, FCB Thickness	0.33mm
Locking Feature	Slide Lock
Cable End Type	Notched
Contact Material	Copper Nickel Alloy
Contact Finish	Tin
Housing Material	Thermoplastic
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	500V
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	2A
Contact Finish Thickness	100.0µin (2.54µm)
Housing Color	Blue
Actuator Color	Gray
Mating Cycles	100
Base Product Number	65801
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	609-5612,65801-021LF-ND
Standard Package	18
Win Source Part Number	1022790-65801-021LF
Ultra Librarian 3D Model	Ultra Librarian 65801-021LF CAD Model

Description

The Amphenol ICC (FCI) Clincher™ 1022790-65801-021LF connector is a 21-position, 1-row receptacle for FFC/FPC (flat flexible) cables.

Features: solder retention and zero insertion force (ZIF)
Pitch: 0.100 inches (2.54mm)
Cable End Type: notched
Contact Finish: tin
Contact Finish Thickness: 100.0μin (2.54μm)
Contact Material: copper nickel alloy
Voltage: 500V
Operating Temperature Range: -65°C to 105°C
Mounting: free hanging (in-line)
Housing Color: blue
Actuator Color: gray
