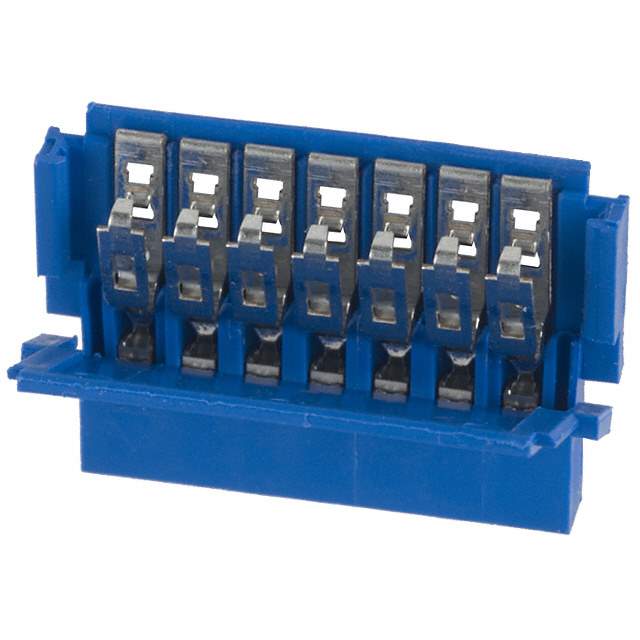

Same model may have multiple batches, images only for reference.

65801-007LF

Name: 65801-007LF
Brand: Amphenol
SKU: 1020422
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	65801-007LF
Manufacturer	Amphenol
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC FPC RCPT 7POS 2.54MM / 7 Position FFC, FPC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Amphenol ICC (FCI)
Series	Clincher™
Package	Tray
Flat Flex Type	FFC, FPC
Mounting Type	Free Hanging (In-Line)
Connector/Contact Type	Receptacle
Number of Positions	7
Pitch	0.100" (2.54mm)
Termination	Solder
FFC, FCB Thickness	0.33mm
Locking Feature	Slide Lock
Cable End Type	Notched
Contact Material	Copper Nickel Alloy
Contact Finish	Tin
Housing Material	Thermoplastic
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	500V
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	2A
Contact Finish Thickness	100.0µin (2.54µm)
Housing Color	Blue
Actuator Color	Gray
Mating Cycles	100
Base Product Number	65801
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	65801007LF,609-2163
Standard Package	54
Win Source Part Number	1020422-65801-007LF
Ultra Librarian 3D Model	Ultra Librarian 65801-007LF CAD Model

Description

The Amphenol ICC (FCI) Clincher™ 1020422-65801-007LF is a high-quality FFC/FPC connector designed for use in various electronic applications.

Positions: 7-position
Pitch: 0.100" (2.54mm)
Flat Flex Type: FFC, FPC
Features: zero insertion force (ZIF) and solder retention
Contact Material: copper nickel alloy
Contact Finish: tin finish
Housing Material: thermoplastic
Flammability Rating: UL94 V-0
Voltage Rating: 500V
Operating Temperature Range: -65°C to 105°C
