Same model may have multiple batches, images only for reference.

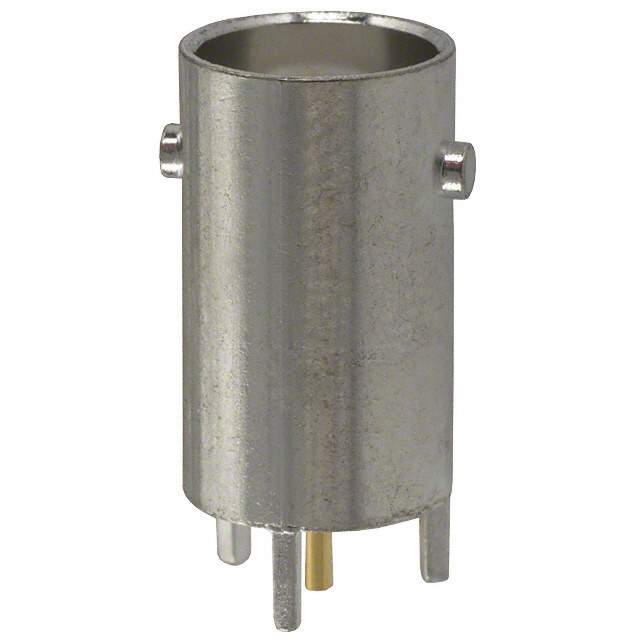

31-5329 Real Image
Same model may have multiple batches, images only for reference.

31-5329

Part No 31-5329
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC RCPT STR 50 OHM PCB / BNC Connector Jack, Female Socket 50Ohm Through Hole Solder
Datasheet
31-5329 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Amphenol RF
Packaging Bulk
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Through Hole
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Beryllium Copper
Body Material Zinc Die Cast
Body Finish Tin
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss 0.2dB
Base Product Number 31-532
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 315329,031-5329,ARF1066
Standard Package 160
Win Source Part Number 1331984-31-5329
Ultra Librarian 3D Model Ultra Librarian 31-5329 CAD Model

Description

The BNC bayonet lock jack female socket connector from Amphenol RF is a coaxial connector assembly with a frequency range of up to 4GHz and an impedance of 50Ohm.

  • Frequency Range: Up to 4GHz
  • Impedance: 50Ohm
  • Contact Termination: Solder
  • Body Material: Zinc die-cast
  • Dielectric Material: PTFE
  • Voltage Rating: 500V
  • Insertion Loss: 0.2dB
  • Shielded: Yes
  • Body Finish: Tin
  • Mating Cycle: 500
  • Temperature Range: -65°C to 165°C
  • RoHS Compliant: Yes
