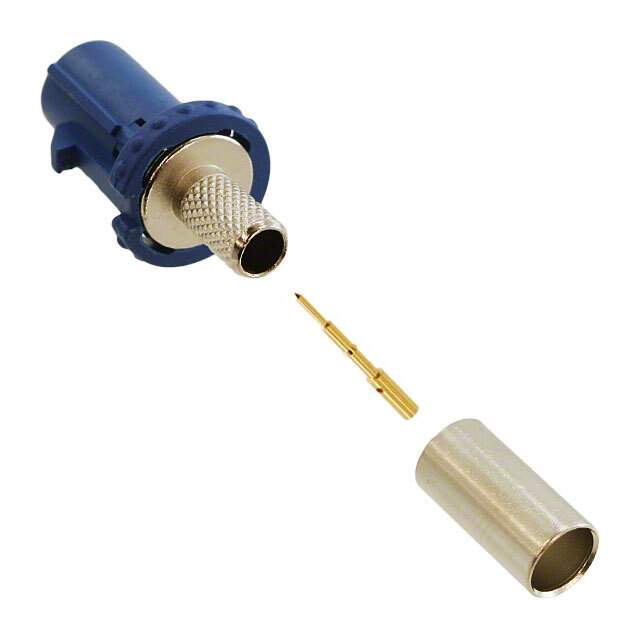

2FA1-NCSP-C04-1 Real Image
Same model may have multiple batches, images only for reference.

2FA1-NCSP-C04-1

Part No 2FA1-NCSP-C04-1
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description CONN FAKRA PLUG STR 50 OHM CRIMP / SMB, Fakra Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Crimp
Datasheet
2FA1-NCSP-C04-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol RF
Package Bulk
Connector Style SMB, Fakra
Connector Type Plug, Male Pin
Contact Termination Crimp
Shield Termination Crimp
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Fastening Type Locking Ramp
Frequency - Max 4 GHz
Number of Ports 1
Features Code C
Housing Color Blue, Signal
Center Contact Material Brass
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Material Zinc Die Cast
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE), Polymethylpentene (PMP)
Temperature Range - Operating -40°C ~ 115°C
Mating Cycles 100
Insertion Loss 0.3dB
Base Product Number 2FA1
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names 2FA1NCSPC041,ARF1620
Standard Package 2,000
Win Source Part Number 1135354-2FA1-NCSP-C04-1
Ultra Librarian 3D Model Ultra Librarian 2FA1-NCSP-C04-1 CAD Model

Description

The Amphenol RF 2FA1NCSPC041 SMB Fakra Coaxial Connector is a male pin plug connector designed for use in RF applications.

  • Maximum Frequency: 4 GHz
  • Fastening Type: locking ramp
  • Contact Termination: crimp
  • Housing Color: blue and signal
  • Material: zinc die-cast
  • Body Finish: nickel
  • Center Contact Material: brass
  • Center Contact Plating: gold
  • Dielectric Material: PTFE and PMP
  • Suitable Cables: RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907
  • Impedance: 50 Ohm
  • Insertion Loss: 0.3dB
  • Mating Cycle: 100
  • Package: bulk
  • Pieces Included: three pieces (connector, contact, and ferrule)
