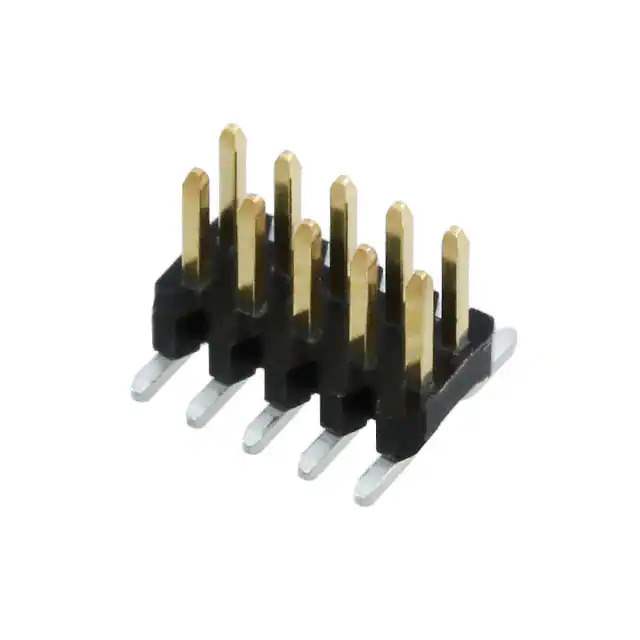

20021121-00010C4LF Real Image
Same model may have multiple batches, images only for reference.

20021121-00010C4LF

Part No 20021121-00010C4LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER SMD 10POS 1.27MM / Connector Header Surface Mount 10 position 0.050" (1.27mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol
Series Minitek127® 1.27mm
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 125VAC
Contact Finish Thickness - Post 50.0µin (1.27µm)
Base Product Number 20021121
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849218-20021121-00010C4LF
Ultra Librarian 3D Model Ultra Librarian 20021121-00010C4LF CAD Model

Description

The Amphenol 849218-20021121-00010C4LF is a male pin header connector from the Minitek127® 1.27mm series. Amphenol manufactures the 849218-20021121-00010C4LF.

  • Connector Type: Header
  • Pin Gender: Male
  • Positions: 10
  • Features: Pick and Place, Push-Pull
  • Termination: Solder
  • Contact Material: Copper Alloy
  • Voltage Rating: 125VAC
  • Connection Type: Board-to-Board
  • Pitch: 0.050" (1.27mm)
  • Contact Finish: Gold
  • Package: 600 pcs
