Same model may have multiple batches, images only for reference.

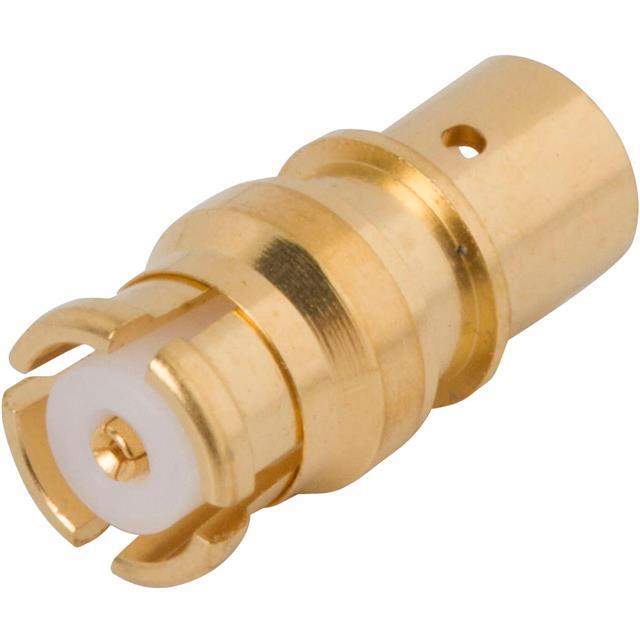

1221-4005 Real Image
Same model may have multiple batches, images only for reference.

1221-4005

Part No 1221-4005
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description CONN SMP JACK STR 50OHM SOLDER / SMP Connector Jack, Female Socket 50Ohm Free Hanging (In-Line) Solder
Datasheet
1221-4005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol SV Microwave
Series SMP
Package Bulk
Connector Style SMP
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-174, 316
Fastening Type Snap-On
Frequency - Max 3 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Beryllium Copper
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 165°C
Base Product Number 122140
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 100
Win Source Part Number 1032634-1221-4005
Ultra Librarian 3D Model Ultra Librarian 1221-4005 CAD Model

Description

The Amphenol SV Microwave product is a connector that belongs to the SMP series.

  • Series: SMP
  • Connector Type: Jack, Female Socket
  • Fastening Type: Snap-On
  • Temperature Range: -55°C ~ 165°C
  • Maximum Frequency: 3 GHz
  • Win Source Part Number: 1032634-1221-4005
