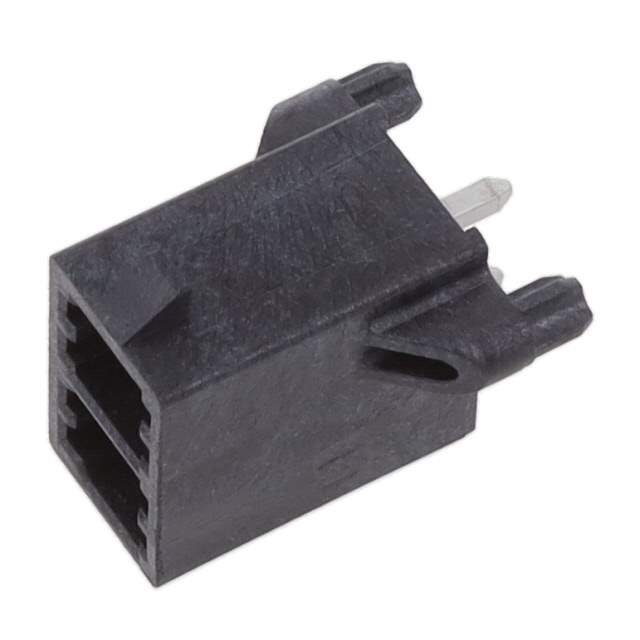

Same model may have multiple batches, images only for reference.

10142708-02000LF

Name: 10142708-02000LF
Brand: Amphenol
SKU: 1142399
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	10142708-02000LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN 5.70MM VERTICAL THROU / Connector Header Through Hole 2 position 0.224" (5.70mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Minitek® Pwr 5.7
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.224" (5.70mm)
Number of Positions	2
Number of Rows	2
Row Spacing - Mating	0.224" (5.70mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.147" (3.73mm)
Insulation Height	0.583" (14.80mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Features	Board Guide, Glow Wire Compliant
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	600VAC/DC
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	General Purpose, Medical, Military, Telecommunications
Base Product Number	10142708
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-10142708-02000LF
Standard Package	300
Win Source Part Number	1142399-10142708-02000LF
Ultra Librarian 3D Model	Ultra Librarian 10142708-02000LF CAD Model

Description

The Amphenol Minitek® Pwr 5.7 Header is a high-quality connector designed for use in a variety of applications.

Contact Material: Copper Alloy
Voltage Rating: 600VAC/DC
Mounting Type: Through-Hole
Fastening Type: Locking Ramp
Pitch: 0.224" (5.70mm)
Contact Finish: Gold
Application: Board to Cable/Wire
RoHS: Compliant
REACH SVHC: None
Suitable for: General Purpose, Medical, Military, Telecommunications
