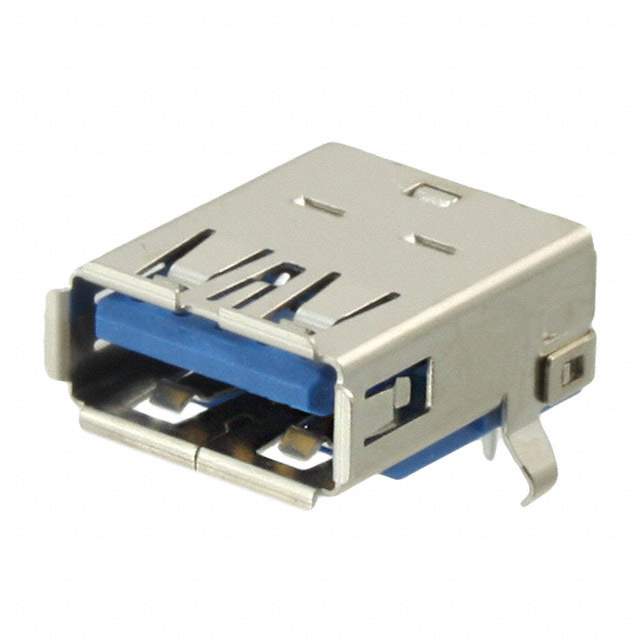

10117835-001LF Real Image
Same model may have multiple batches, images only for reference.

10117835-001LF

Part No 10117835-001LF
Manufacturer Amphenol
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB3.0 TYPEA 9POS R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole, Right Angle
Manufacturer AMPHENOL
Package Tray
Part Status Obsolete
Operating Temperature Range -55°C ~ 85°C
Mounting Through Hole, Right Angle
Family Name 10117835
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 10117835001LF, 609-4661
Quantity per package 120
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904958-10117835-001LF
Ultra Librarian 3D Model Ultra Librarian 10117835-001LF CAD Model

Description

The Amphenol 904958-10117835-001LF USB-A connector is a receptacle connector with a USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) specification.

  • Positions: 9
  • Mounting: through-hole mounted @ a right angle
  • Popularity: high
  • Status: obsolete
  • Quantity per Package: 120
  • Temperature Range: -55°C to 85°C
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Other Part Numbers: 10117835001LF and 609-4661
