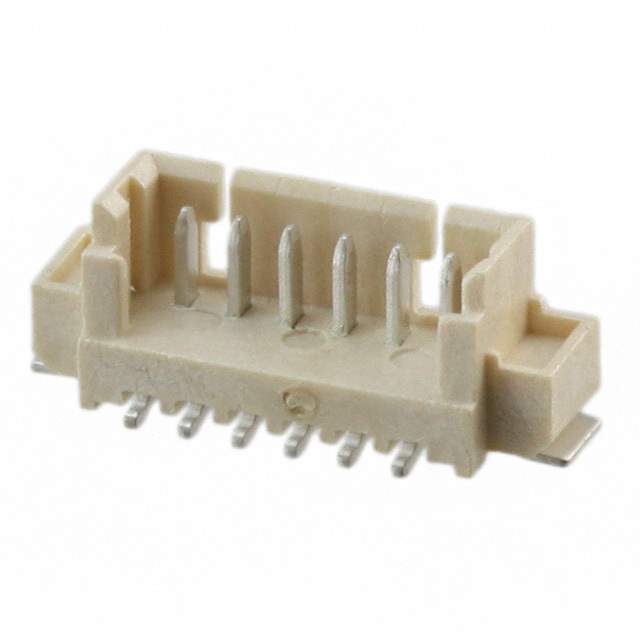

10114828-10106LF Real Image
Same model may have multiple batches, images only for reference.

10114828-10106LF

Part No 10114828-10106LF
Manufacturer Amphenol
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 6POS 1.25MM / Connector Header Surface Mount 6 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series 10114828
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.089" (2.25mm)
Insulation Height 0.185" (4.70mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 125V
Base Product Number 10114828
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 1011482810106LF,609-4390-2,609-4390-1,609-4390-6
Standard Package 1,000
Win Source Part Number 998808-10114828-10106LF
Ultra Librarian 3D Model Ultra Librarian 10114828-10106LF CAD Model

Description

The 10114828-10106LF is a male pin header connector manufactured by Amphenol ICC (FCI).

  • Connector Type: Rectangular
  • Shrouded: 3 wall
  • Pitch-Mating: 0.049 inches (1.25mm)
  • Positions Loaded: 6
  • Pin Gender: Male
  • Solder Retention: Yes
  • Fastening Type: Detent lock
  • Voltage Rating: 125V
  • Current Rating: 1A
  • Temperature Range: -40°C to 105°C
  • Mounting: SMD (SMT)
