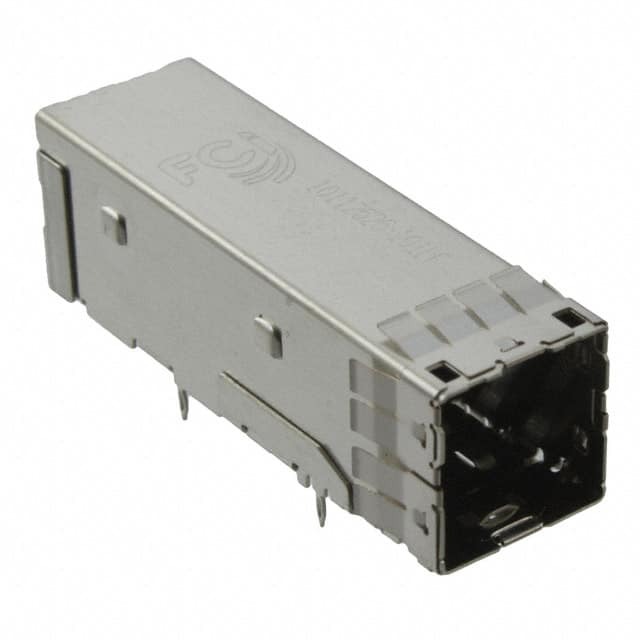

10112626-101LF
Same model may have multiple batches, images only for reference.

10112626-101LF

Part No 10112626-101LF
Manufacturer Amphenol
Catalog Pluggable Connectors
Description CONN MINI HD SAS RCP CAGE 16P RA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr Amphenol
Package Tray
Product Status Obsolete
Connector Style Receptacle with Cage
Connector Type SAS, Mini HD
Number of Positions 16
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Features EMI Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 10112626
Standard Package 70 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853608-10112626-101LF
Ultra Librarian 3D Model Ultra Librarian 10112626-101LF CAD Model

Description

The 853608-10112626-101LF is a pluggable connector assembly from the SAS, Mini HD series from Amphenol.

  • Number of Positions: 16
  • Features: EMI Shielding
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mounting Type: Through-Hole, Right Angle
  • Standard Package: 70 pieces
  • Product Status: Active
