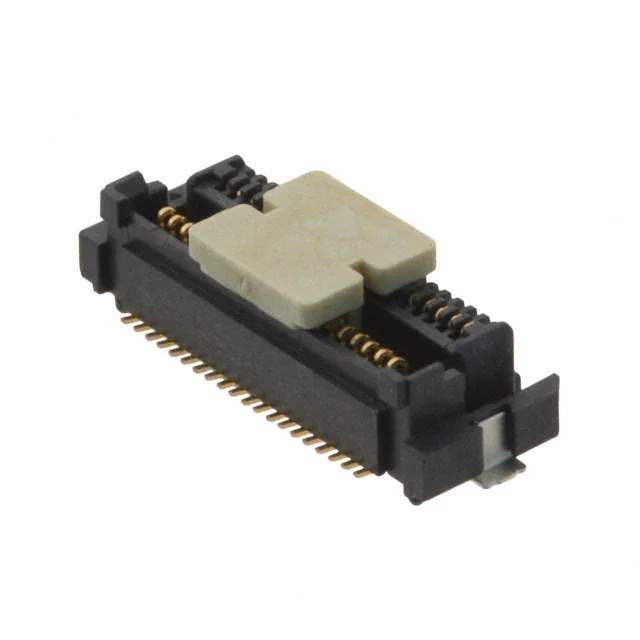

Same model may have multiple batches, images only for reference.

10106813-041112LF

Name: 10106813-041112LF
Brand: Amphenol
SKU: 853604
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	10106813-041112LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN SELF-MATE 40POS SMD GOLD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Amphenol
Series	MezzoStak
Package	Tape & Reel
Product Status	Active
Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Number of Positions	40
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Solder Retention
Contact Finish	Gold or Gold, GXT™
Contact Finish Thickness	15.0µin (0.38µm)
Mated Stacking Heights	4mm, 4.5mm, 5.5mm
Height Above Board	0.140" (3.55mm)
Base Product Number	10106813
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853604-10106813-041112LF
Ultra Librarian 3D Model	Ultra Librarian 10106813-041112LF CAD Model

Description

The MezzoStak series from Amphenol is a versatile and high-quality solution for board-to-board connectivity.

Connector Type: Rectangular Connector Array
Style: Self-Mating, Non-Gendered, Hermaphroditic
Pitch: 0.020" (0.50mm)
Number of Positions: 40
Features: Board Guides, Solder Retention
Contact Finish: Gold
Contact Finish Thickness: 15.0μin (0.38μm)
Packaging: Tape and Reel
Mated Stacking Heights: 4mm, 4.5mm, 5.5mm
Height Above Board: 0.140" (3.55mm)
Product Status: Active
