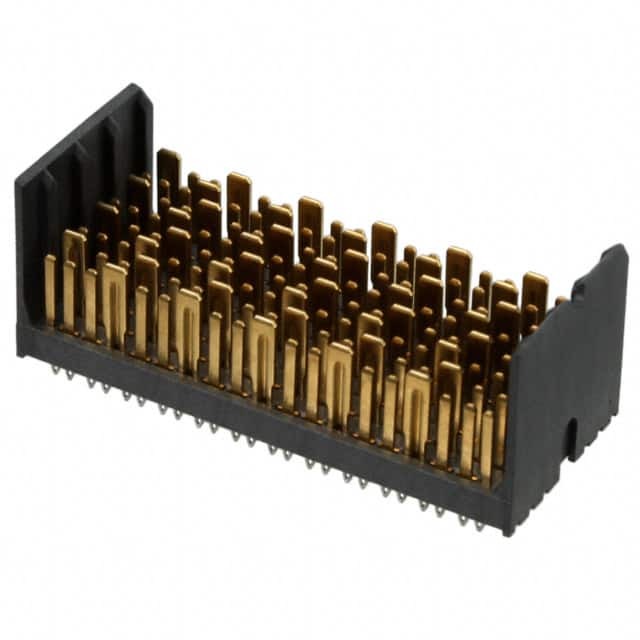

Part No 10104999-00E-20DLF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN HEADER XCEDE PCB / Connector Header, Male Pins and Blades Through Hole XCede?
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Amphenol
Series XCede®
Package Tray
Product Status Active
Connector Usage Backplane
Connector Type Header, Male Pins and Blades
Connector Style XCede®
Number of Positions Loaded All
Number of Columns 8
Mounting Type Through Hole
Termination Press-Fit
Contact Layout, Typical 48 Signal Pairs, 52 Ground
Contact Finish Gold or Gold, GXT™
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Base Product Number 10104999
Standard Package 144 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 904928-10104999-00E-20DLF
Ultra Librarian 3D Model Ultra Librarian 10104999-00E-20DLF CAD Model

Description

The Amphenol 904928-10104999-00E-20DLF is a specialized backplane connector from the XCede series.

  • Series: XCede
  • Columns: 8
  • Contact Layout: 48 Signal Pairs, 52 Ground Contacts
  • Connector Type: Header
  • Contact Gender: Male Pins and Blades
  • Termination: Press-Fit
  • Contact Finish: Gold or Gold, GXT™
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Application: Backplane
  • Standard Package: 144 pcs
  • Flammability Rating: UL94 V-0
