Same model may have multiple batches, images only for reference.

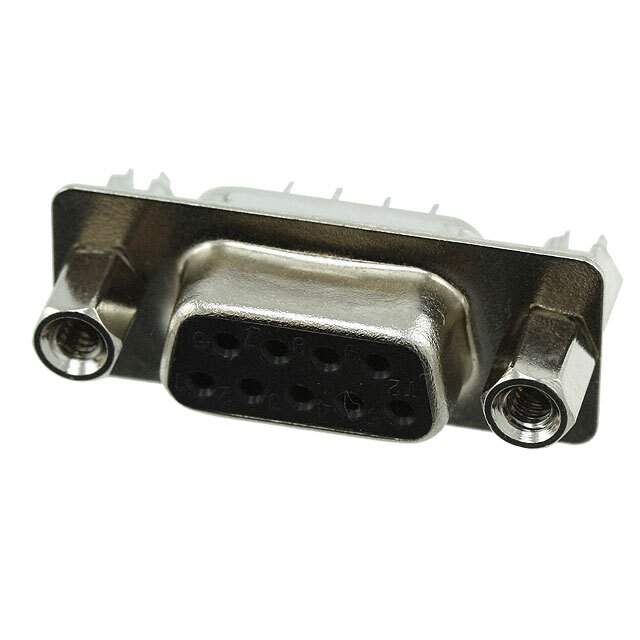

10090098-S094VLF Real Image
Same model may have multiple batches, images only for reference.

10090098-S094VLF

Part No 10090098-S094VLF
Manufacturer Amphenol
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 9POS VERT SLDR  /  9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
10090098-S094VLF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Amphenol ICC (FCI)
Series 10090098
Package Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Board Side (4-40); Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Features Board Lock
Voltage Rating 250V
Color Black
Dielectric Material Thermoplastic, Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 10090098
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 10090098S094VLF,609-3996
Standard Package 90
Win Source Part Number 1226014-10090098-S094VLF
Ultra Librarian 3D Model Ultra Librarian 10090098-S094VLF CAD Model

Description

The AMPHENOL 10090098 is a D-Sub connector with 9 positions.

  • Positions: 9
  • Connector Type: Receptacle
  • Gender: Female
  • Board Lock: Yes
  • Rows: Two
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Package: Tray
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Insulation Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Standard Package: 90
  • Flange Feature: Board Side (4-40) and Mating Side Female Screw Lock (4-40)
  • Shell Material: Steel with Tin-Nickel Plated Finish
  • Dielectric Material: Thermoplastic, Glass-Filled
  • Shell Size: 1 (DE, E)
  • MSL Level: 1 (Unlimited)
  • Current Rating: 5A per Contact
  • REACH Status: REACH Unaffected
  • HTSUS: 8536.69.4040
