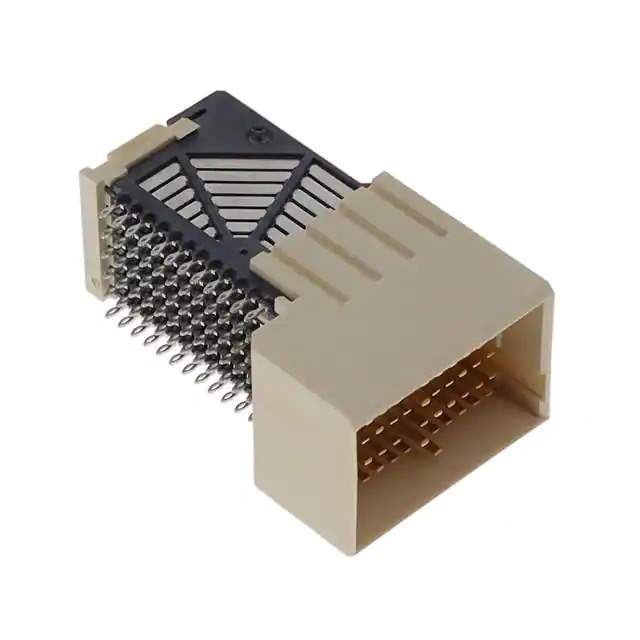

Part No 10052825-101LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN RCPT HIGH SPEED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Amphenol
Series Airmax VS®
Package Tube
Product Status Active
Connector Usage Daughtercard
Connector Type Header, Male Pins
Number of Positions 72
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 12
Number of Columns 6
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Color Natural
Current Rating (Amps) 500mA per Contact
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 85°C
Base Product Number 10052825
Standard Package 240 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 847286-10052825-101LF
Ultra Librarian 3D Model Ultra Librarian 10052825-101LF CAD Model

Description

The 847286-10052825-101LF is a specialized backplane connector from the Airmax VS series by Amphenol.

  • Series: Airmax VS
  • Connector Type: Header with Male Pins
  • Positions: 72
  • Arrangement: 12 Rows x 6 Columns
  • Pitch: 0.079 inches (2.00mm)
  • Color: Natural
  • Application: Daughtercard
  • Contact Finish: Gold
  • Termination: Press-Fit
  • Temperature Range: -55°C to 85°C
  • Current Rating: 500mA per contact
