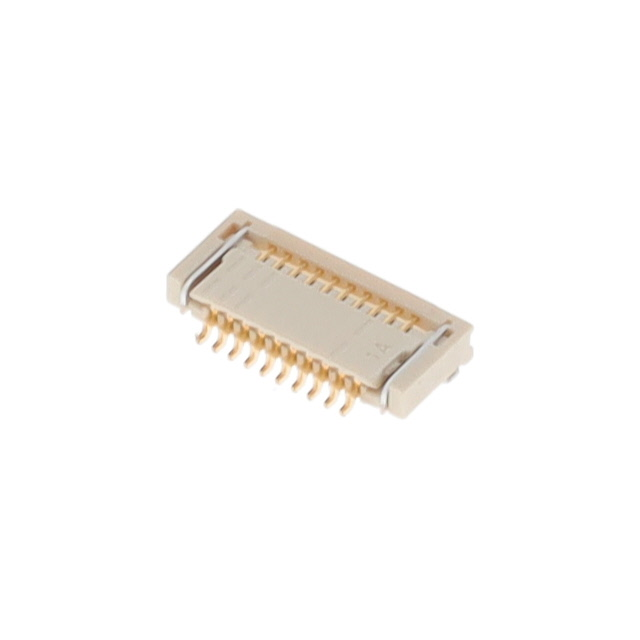

10051922-1010EHLF Real Image
Same model may have multiple batches, images only for reference.

10051922-1010EHLF

Part No 10051922-1010EHLF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 10POS 0.50MM R/A / 10 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series VLL
Package Tape & Reel
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 10
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.051" (1.30mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 2.00µin (0.051µm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Base Product Number 10051922
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-6043-6,10051922-1010EHLF-ND,609-6043-1,609-6043-2
Standard Package 4,500
Win Source Part Number 967063-10051922-1010EHLF
Ultra Librarian 3D Model Ultra Librarian 10051922-1010EHLF CAD Model

Description

This Amphenol ICC (FCI) 967063-10051922-1010EHLF FFC/FPC connector is part of the VLL series.

  • Series: VLL
  • Positions: 10 positions
  • Pitch: 0.020 inches (0.50mm)
  • Features: solder retention and zero insertion force (ZIF)
  • Contact Finish: gold
  • Thickness: 2.00 µin (0.051 µm)
  • Packaging: tape and reel packaging
  • Standard Package: 4,500
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.69.4051
  • Other Part Numbers: 609-6043-6, 10051922-1010EHLF-ND, 609-6043-1, and 609-6043-2
  • Manufacturer: Amphenol ICC (FCI)
